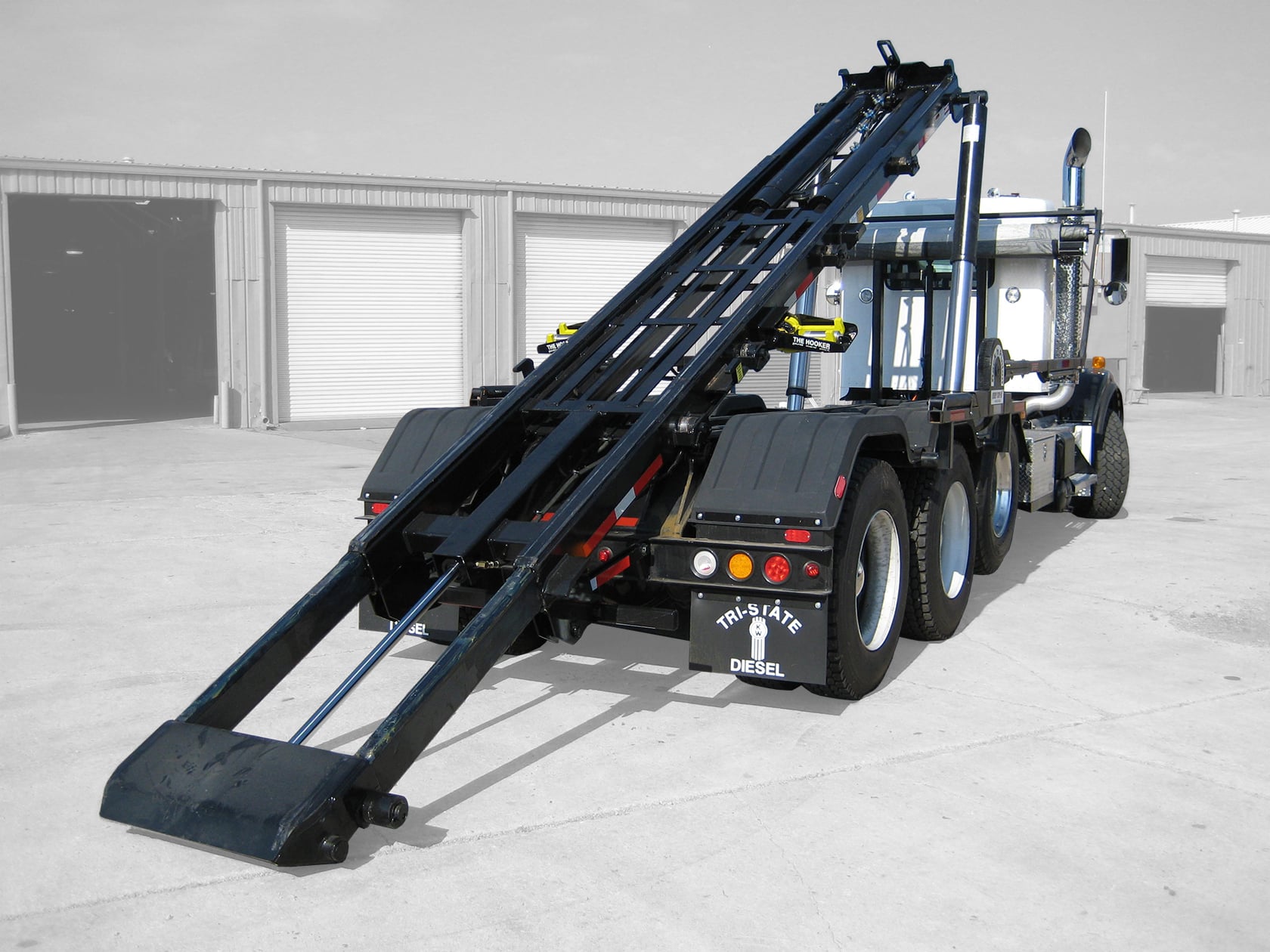

Galfab, Short Extendible Tail Hoist (OX Series)

The Short Extendible Tail roll-off hoist has a 40” tail extension in lieu of the 80” extension which allows for this model to come standard with the Galfab Auto-Fold DOT bumper. This hoist allows for low loading height for limited overhead clearance as well as the ability to pick up below ground level. This hoist is also available in the 8” mainframe and 2” subframe and the 10” sub frameless hoist. Combines the versatility of an outside rail hoist with the flexibility of an extendable tail.

  • 8″ x 4 x 3/8” Main Frame Tube
  • ½ inch x 3 ½ inch Wear Strip on Top
  • 3″ x 2″ x 1/4″ Subframe
  • 2 1/2″ Diameter Rear Hinge
  • All Working Points Greaseable
  • Pintle Ready Apron
  • 1″ Spring Loaded Container Locks
  • 2 1/2″ Diameter Lift Cylinder Shafts
  • Interchangeable 10 ” Vertical and Horizontal Sheaves
  • 3/8 inch x 3-inch Winch Cylinder Rod Covers
  • 6 Inboard and Outboard Supported Outside Rollers
  • 48 Gallon Oil Reservoir with Sight and Temperature Gauge
  • 25 Micron Filtration
  • Inside and Outside Controls
  • Choice of Forward or Reverse Mount Single-Stage or Telescopic Lift Cylinders
  • LED Lighting System
  • 7/8” Cable with Heavy Duty Swivel Eye Hook
  • 40-inch Extendible Tail
  • Galfab Auto-fold DOT Bumper
  • Front Mount Pump
  • Hoist Up Warning Light
  • Sealed Wiring System
  • Hoist Up Alarm
  • Backup Alarm

  • Behind Cab and Oversize Oil Tanks
  • Tool Boxes
  • Auxiliary Stops
  • Poly or Steel Fenders
  • Aluminum Fenders
  • Tarping Systems
  • Hooker Hold On Systems
  • Ratchet Tie Down Straps
  • Integrated hydraulics can be used, if hydraulic tarping system is used
  • PTO
  • Drop Shaft
  • Rear View Camera Systems
  • Work Lights
  • Onboard Scale Systems

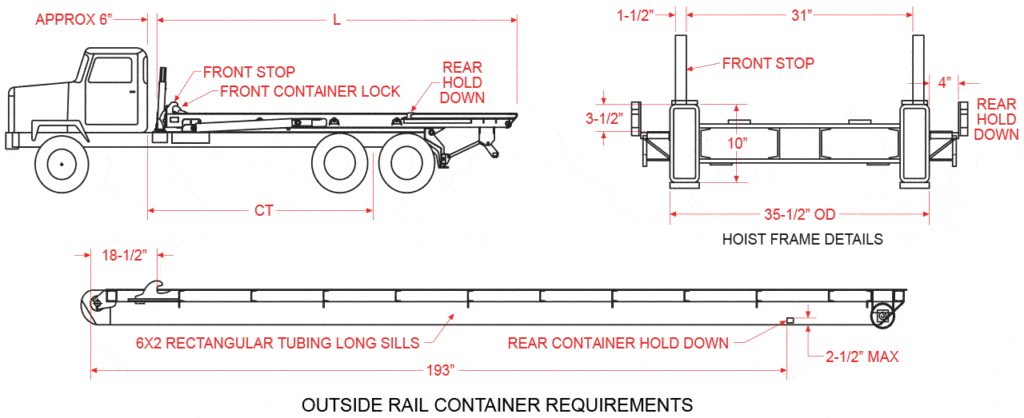

OX Series

Model Capacity CA CA with tarp Length Dump Angle Tail Retracted Dump Angle Tail Extended Up (sec)* Down (sec)* On (sec)* Off (sec)* Lift Cylinder Winch Cylinder Container Length ft Apx Weight lbs
OX60174S072 60,000 174″ 186″ 23’3″ 48° 28° 27 15 41 28 6″ x 4″ x 72″ DA 7″ x 4″ x 79.5″ DA 18′-22′ 7550
OX60174S072R 60,000 174″ 186″ 23’3″ 48° 28° 27 15 41 28 6″ x 4″ x 72″ DA 7″ x 4″ x 79.5″ DA 18′-22′ 7550
OX60174T121 60,000 174″ 186″ 23’3″ 48° 28° 35 29 41 28 6″-5″-4″ x 121″ DAT 7″ x 4″ x 79.5″ DA 18′-22′ 7225
OX75174S072F7 75,000 174″ 186″ 23’3″ 48° 28° 37 23 41 28 7″ x 4″ x 72″ DA 7″ x 4″ x 79.5″ DA 18′-22′ 7550
OX75174S072R7 75,000 174″ 186″ 23’3″ 48° 28° 37 23 41 28 7″ x 4″ x 72″ DA 7″ x 4″ x 79.5″ DA 18′-22′ 7550
OX75174T121 75,000 174″ 186″ 23’3″ 48° 28° 35 29 41 28 6″-5″-4″ x 121″ DAT 7″ x 4″ x 79.5″ DA 18′-22′ 7350
OX60194S072 60,000 194″ 206″ 24’11” 48° 28° 27 15 46 31 6″ x 4″ x 72″ DA 7″ x 4″ x 89.5″ DA 20′-24′ 7850
OX60194S072R 60,000 194″ 206″ 24’11” 48° 28° 27 15 46 31 6″ x 4″ x 72″ DA 7″ x 4″ x 89.5″ DA 20′-24′ 7850
OX60194T121 60,000 194″ 206″ 24’11” 48° 28° 35 29 46 31 6″-5″-4″ x 121″ DAT 7″ x 4″ x 89.5″ DA 20′-24′ 8075
OX75194S072F7 75,000 194″ 206″ 24’11” 48° 28° 37 23 46 31 7″ x 4″ x 72″ DA 7″ x 4″ x 89.5″ DA 20′-24′ 7850
OX75194S072R7 75,000 194″ 206″ 24’11” 48° 28° 37 23 46 31 7″ x 4″ x 72″ DA 7″ x 4″ x 89.5″ DA 20′-24′ 7850
OX75194T121 75,000 194″ 206″ 24’11” 48° 28° 35 29 46 31 6″-5″-4″ x 121″ DAT 7″ x 4″ x 89.5″ DA 20′-24′ 8075
