Galbreath Single Axle (Light Duty) Cable Hoist
From general contractor projects to landscaping and waste handling, Galbreath’s Work Truck Series Cable Hoists are designed to transport loaded containers and equipment up to 20k lbs. and 18’ long. Say goodbye to welding onto the chassis frame with these light-duty hoists featuring bolt-on-design for easy installation. Ideal for metropolitan areas, these hoists feature a wireless remote and electric operating system, which allows users to load and unload containers while monitoring low clearance and hard-to-get-to areas for safer and easier maneuverability. Purpose-built for versatility, Galbreath’s Work Truck Series Cable Hoists are made to last.
Work Truck Series Cable Hoists are designed to transport loaded containers and equipment up to 20k lbs. and 18′ long.
- Electric Over Hydraulic Operation using a Wireless Remote
- Secondary manual controls mounted outside (2-3 spool standard where applicable)
- BOC (back of cab) mounted steel tank w/ dual sight/temp gauge
- 3 Micron Return Filtration inside of steel tank

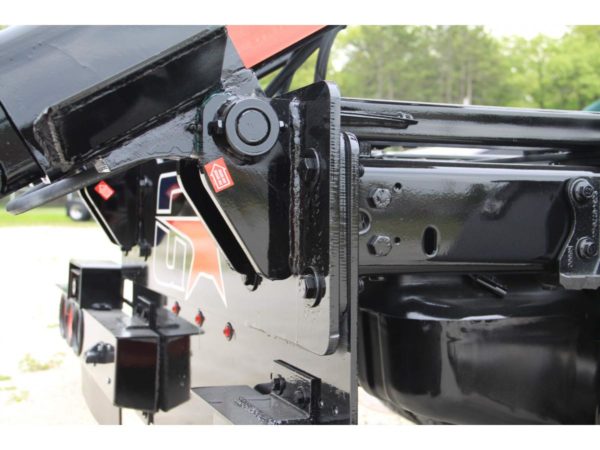

- Adjustable Rear Apron and Split Bumpers and LED Lighting
- Bolt-On Rear Apron (3-piece design)
- Rear Wing Skid Plates & Outside Rail Rollers
- 5/8″ Cable and 8″ Cable Sheaves w/ UHMW Wear Guides
- Customized Engineering Layouts ensure the best fit for each customer
- Engineered and Manufactured in the U.S.

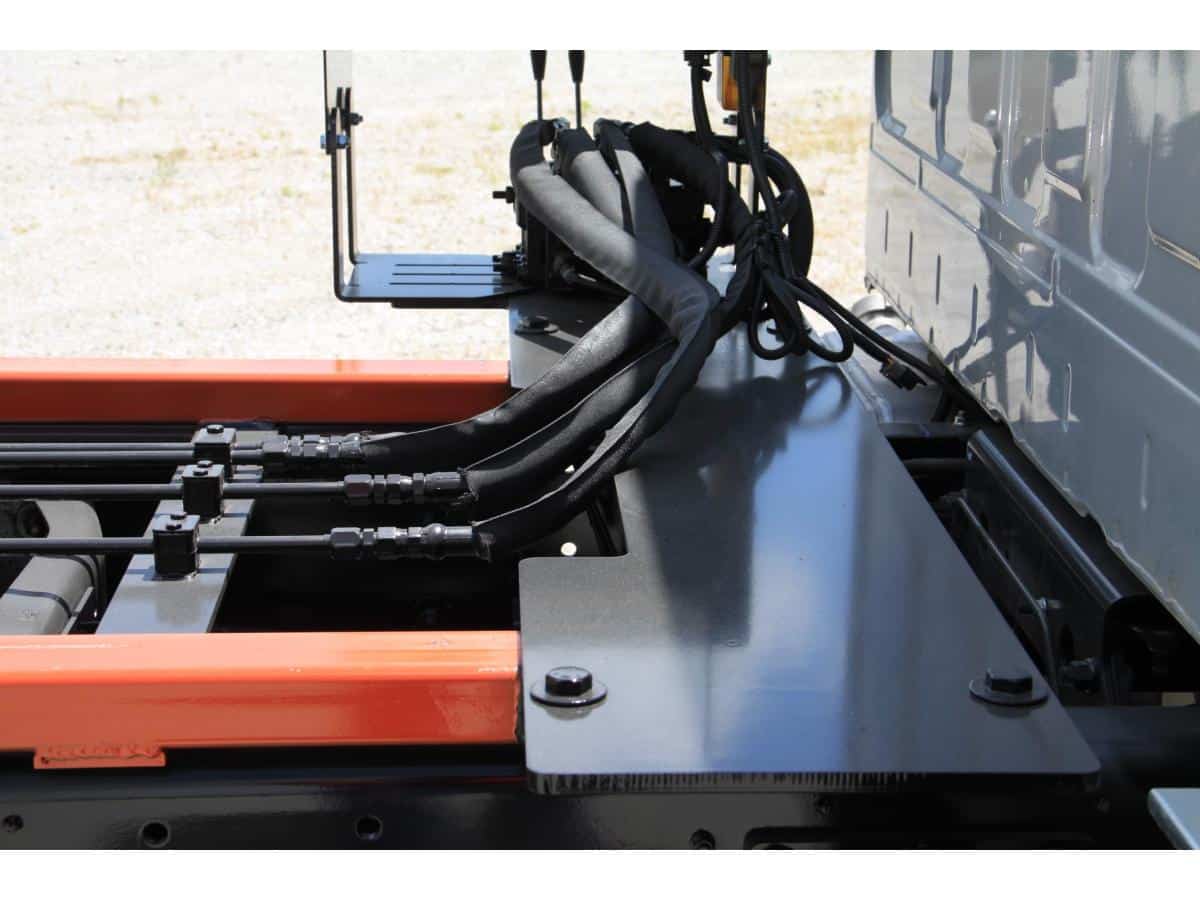

- Tarp/Valve Mounting Platform & Protective Valve Cover (Tarp System Ready)
- Automatic Spring Loaded (pass over style) Front Safety Lock
- In-Cab 3/4″ Flashing LED Hoist Up Warning Light
- Backup Alarm & Hoist Up Alarm
- Dual 4″ Lift and Winch Cylinders
- Dual Safety/Maintenance Props
- Bolt-On Ready (no welding required)
- Ships Out in 2-part epoxy finished paint
- Warranty: 1 year on Hoist and 2 Year Limited on Hydraulic System
- Pioneer® Tarping Systems
- Toolboxes
- Back-Up Camera Systems
- Fenders
- Safety and Work Light Packages
- Nylon Ratchet Rear Hold Downs
- Inside Air Controls (Only available on WT-2018 models in Class 6 chassis)
- Side Mount Oil Tank
- Auxiliary Front Stops for Shorter Containers
| Model | Description |
|---|---|
| WT-1216 | SINGLE AXLE–12k–120″ CA MODELS–Fixed Tail, Outside Rail – 10′ – 16′ Containers – Bolt-On, Finish Paint, Electric Over Hyd. (remote controlled) |
| WT-1216X | SINGLE AXLE–12k–120″ CA MODELS–44″ Extendable Tail, Outside Rail – 10′ – 16′ Containers – Bolt-On, Finish Paint, Electric Over Hyd. (remote controlled) |
| WT-2018 | SINGLE AXLE–20k–138″ CA MODELS–Fixed Tail, Outside Rail – 12′ – 18′ Containers – Bolt-On, Finish Paint, Electric Over Hyd. (remote controlled) |
| WT-2018X | SINGLE AXLE–20k–138″ CA MODELS–48″ Extendable Tail, Outside Rail – 12′ – 18′ Containers – Bolt-On, Finish Paint, Electric Over Hyd. (remote controlled) |
Request a Quote
Contact for Price
