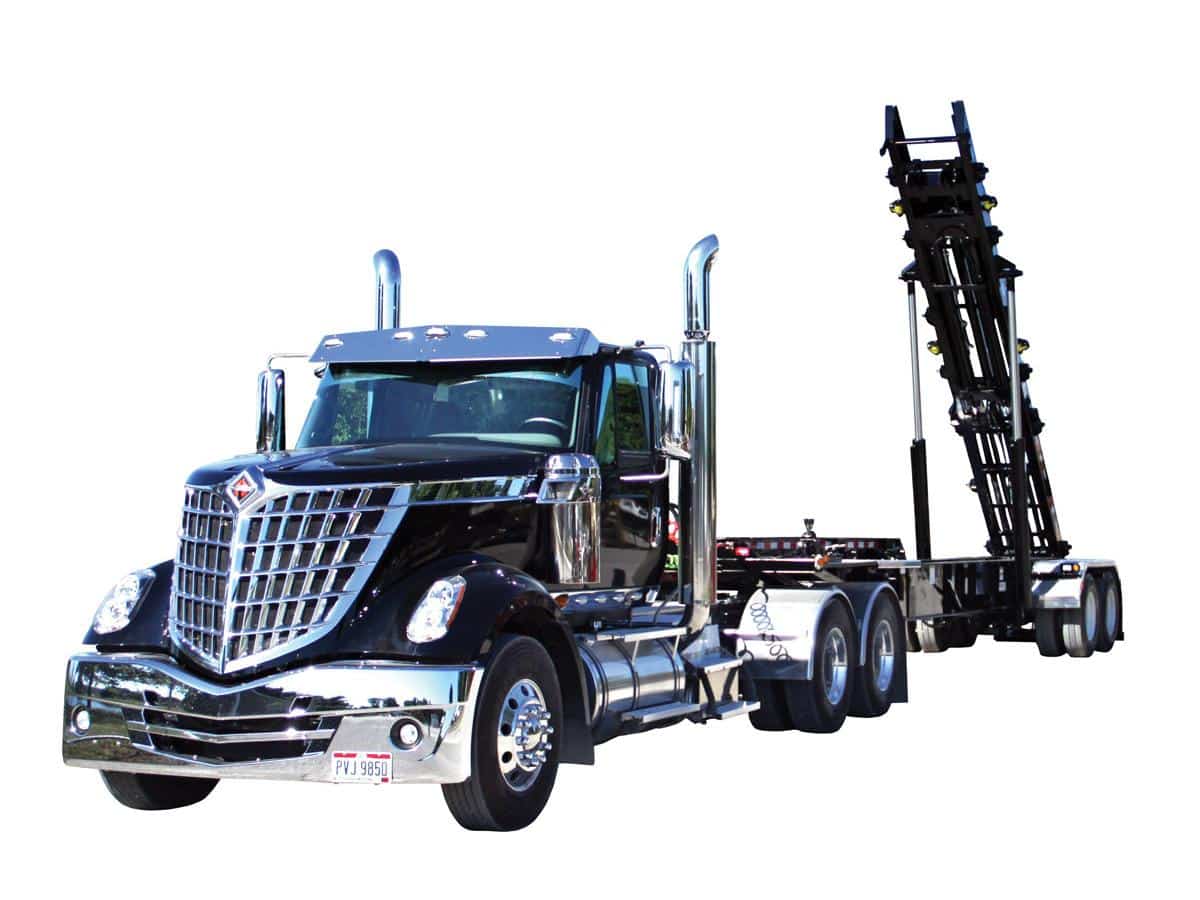

Galbreath Heavy Duty Specialty Roll-Off Trailers

Galbreath’s specialty roll-off trailer series is designed with a movable center carriage to maximize weight distribution.

AC-series trailers are heavy-duty and feature a hoist that is capable of distributing the load for maximum weight distribution. Ideal for long hauling operations in the scrap industry.

  • 10” x 4” x 1/2” A500 grade C tubing (3/8″ on EX & EX/HH models)
  • 1/2″ Angle Steel (IO models only); 3/8″ T1 Wear Strips on all other models
  • 8” x 4” A500 grade C tubing
  • 36 lb. W.F. – 22″ I-Beam A36 Steel & C-Channel Cross Members
  • A36 Steel 16″ Formed C-Channel Cross Members
  • 24” fifth wheel pin setting
  • Smooth Steel Tractor Fenders
  • 3 OR 4 spool / 45 GPM w/ safety bypass
  • (2) DA Rod Type
  • (2) DA Rod Type
  • (1) 2-Stage DAT Telescopic
  • 2 ½” solid steel
  • ⅞” EXIWRC (Domestic) Steel Cable
  • Swivel Eye cable end (OR, OR/HH, IO, EX, EX/HH) – Knuckle (HH)
  • 10″ grease grooved
  • (4) cable clamps
  • 1 ½” steel plate
  • (2) sets of HD Nylon Ratcheting Rear Container Hold Downs
  • 4″ O.D. Outboard Supported with bronze bearings
  • Fixed tail (OR, IO & HH models); 80″ ext. tail (EX, EX/HH models)
  • Auto fold mechanical w/ energy absorbtion (not req. on EX, EX/HH & HH models)
  • 50k lb. rated WC Single Point Air Ride w/ 25k lb. axles
  • 10-Hole Hub Piloted Steel Rims w/ 11R/22.5 16 Ply Tires w/ Wheel Check Indicators
  • Drum Brake Axles and Equipped w/ Air Brake & Suspension Controler
  • Twin Leg Holland Manual Landing Gear 50k lb. lift capacity
  • 1,850 PSI
  • 37.5 GPM @ 1,500 RPM (required)
  • 65 gallons (required)

  • Pioneer Tarping Systems
  • Outside Rail Skid Plates; Full Length or Rear Wing
  • Tarp Boxes/Toolboxes in various types and sizes (poly, steel, aluminum)
  • Fenders in various types and configurations (poly, steel, aluminum)
  • Lift Axles (increases GVWR and helps comply with Bridge Laws)
  • Fixed Tri-Axle Suspension
  • Wheels and Tires
  • Hubometer
  • Side mount spare tire carrier
  • Auxiliary Container Stops and Rear Hold Downs
  • Various Cable Ends
  • Scale Systems
  • Additional trailer models can be made to suit specific needs and requirements

Model Description
AC-OR-416 416 MODELS–60k lb. Hoist Cap. – 80k lb. GVWR (outer bridge)–Outside Rail 35 1/2″ – 20′-24′ Containers (Moveable Center Carriage)
AC-IO-416 416 MODELS–60k lb. Hoist Cap. – 80k lb. GVWR (outer bridge)–Inside/Outside Rail 35 1/2″ – 20′-24′ Containers (Moveable Center Carriage)
AC-HH-416 416 MODELS–50k lb. Hoist Cap. – 80k lb. GVWR (outer bridge)–Dead Lift, Narrow Outside Rail 35″ – 20′-22′ Containers (Moveable Center Carriage)
AC-EX-416 416 MODELS–60k lb. Hoist Cap. – 80k lb. GVWR (outer bridge)–Extendible Tail, Outside Rail (Moveable Center Carriage)
AC-OR/HH-416 416 MODELS–60k lb. Hoist Cap. – 80k lb. GVWR (outer bridge)–Narrow Outside Rail 35″ w/ Combo Front Stops – 20′-24′ Containers (Moveable Center Carriage)
AC-EX/HH-416 416 MODELS–60k lb. Hoist Cap. – 80k lb. GVWR (outer bridge)–Narrow Outside Rail 35″/Ext. Tail (80″) w/ Combo Front Stops – 20′-24′ Containers (Moveable Center Carriage)
AC-OR/HH-430 430 MODELS–60k lb. Hoist Cap. – 80k lb. GVWR (outer bridge)–Narrow Outside Rail 35″ w/ Combo Front Stops – 20′-24′ Containers (Moveable Center Carriage)
AC-EX/HH-430 430 MODELS–60k lb. Hoist Cap. – 80k lb. GVWR (outer bridge)–Narrow Outside Rail 35″/Ext. Tail (80″) w/ Combo Front Stops – 20′-24′ Containers (Moveable Center Carriage)
