Parker

Commercial/Parker, Replacement SAT Dump Hoist Cylinder S63DC-102-138

Condition: OEM Replacement
Make: Parker
OEM Equipment Link

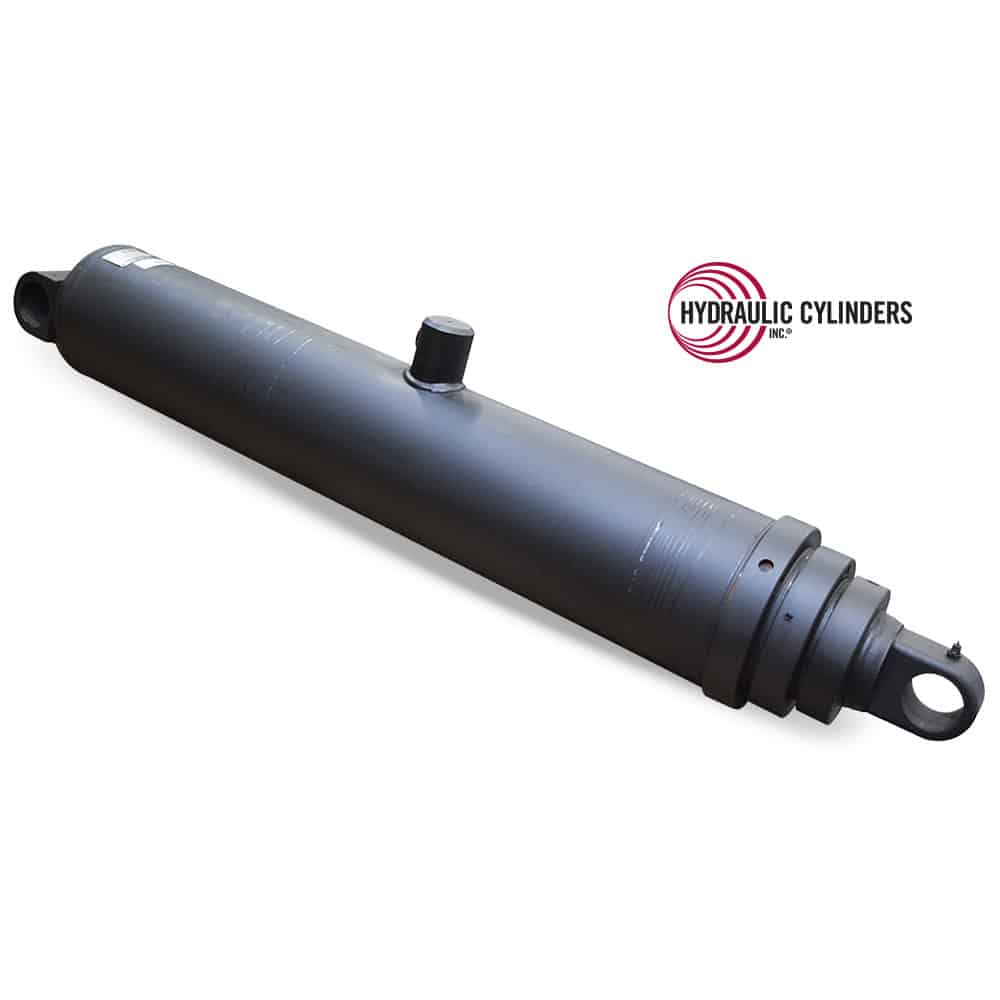

  • This is a replacement telescopic hydraulic cylinder for Heil dump trucks.
  • The function of this cylinder is the dump truck hoist, body raise, and tipping.
  • This cylinder is a high-quality replacement for the OEM version.

Weight 340 lbs

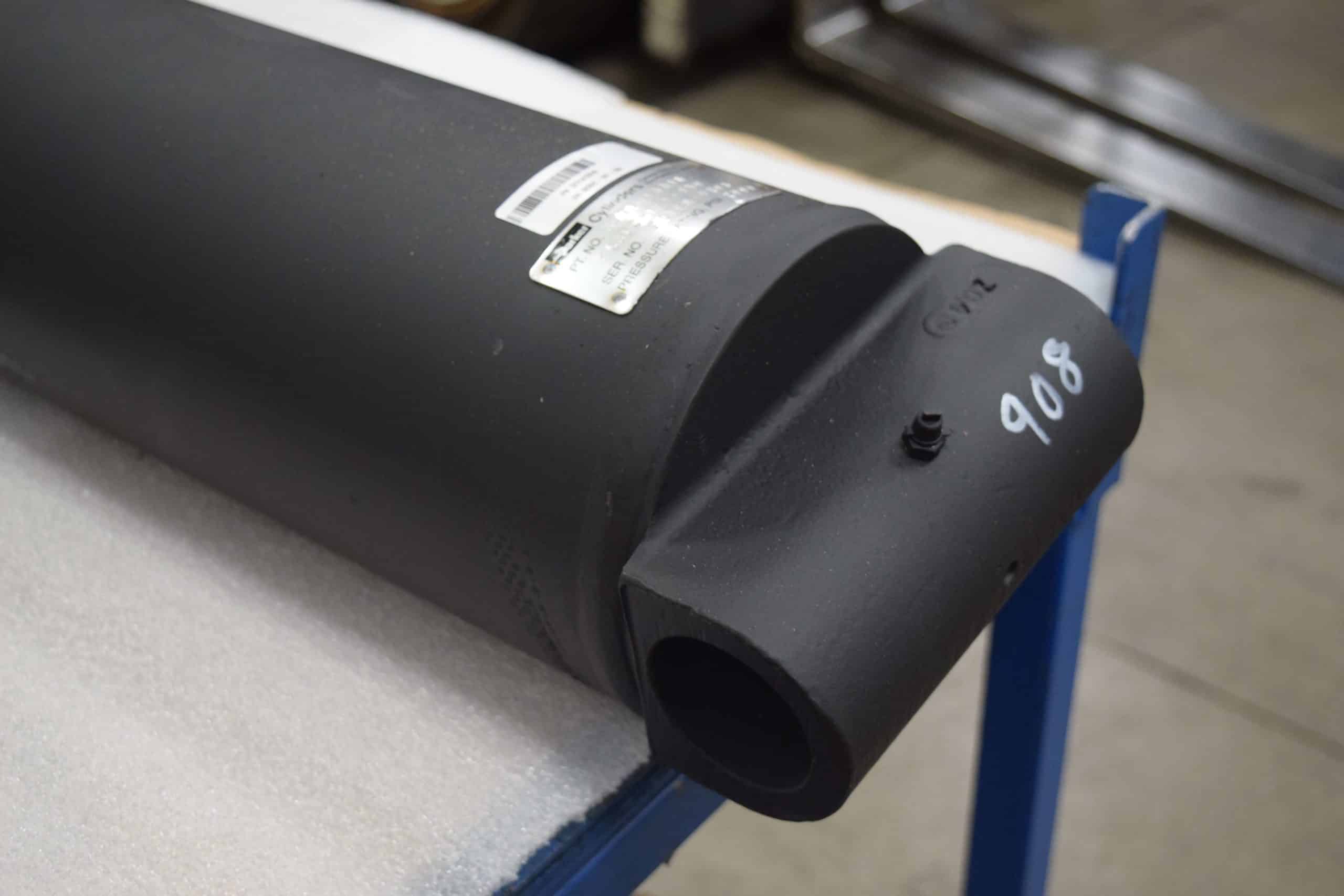

Base End Mount Type Cross-Tube
Base Mount Width 8.00″
Base Pin Size 2.37″
Closed 59.5″

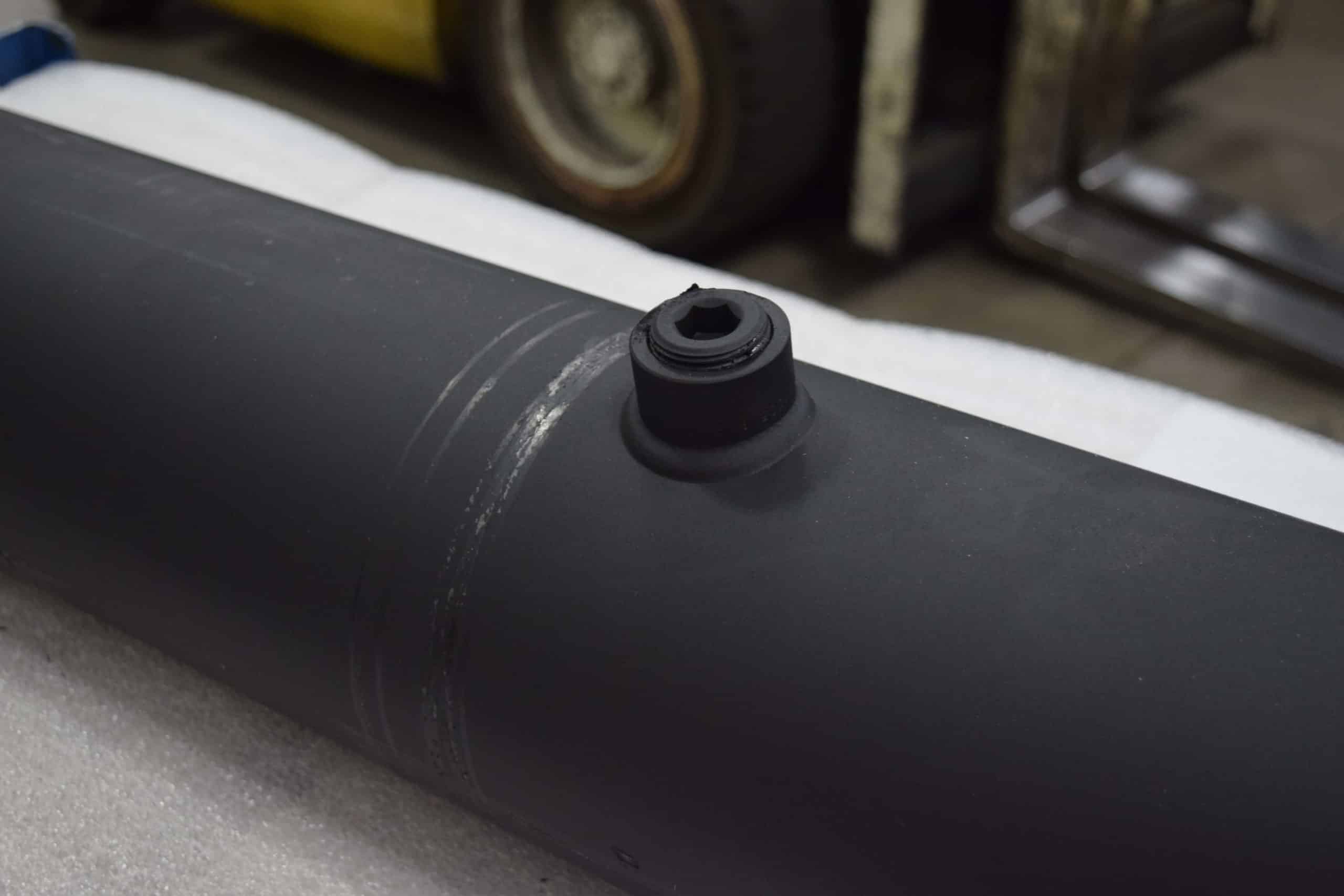

Extend Port/Plunger -16 SAE ORB 90D
Open Extended Length 197.87″

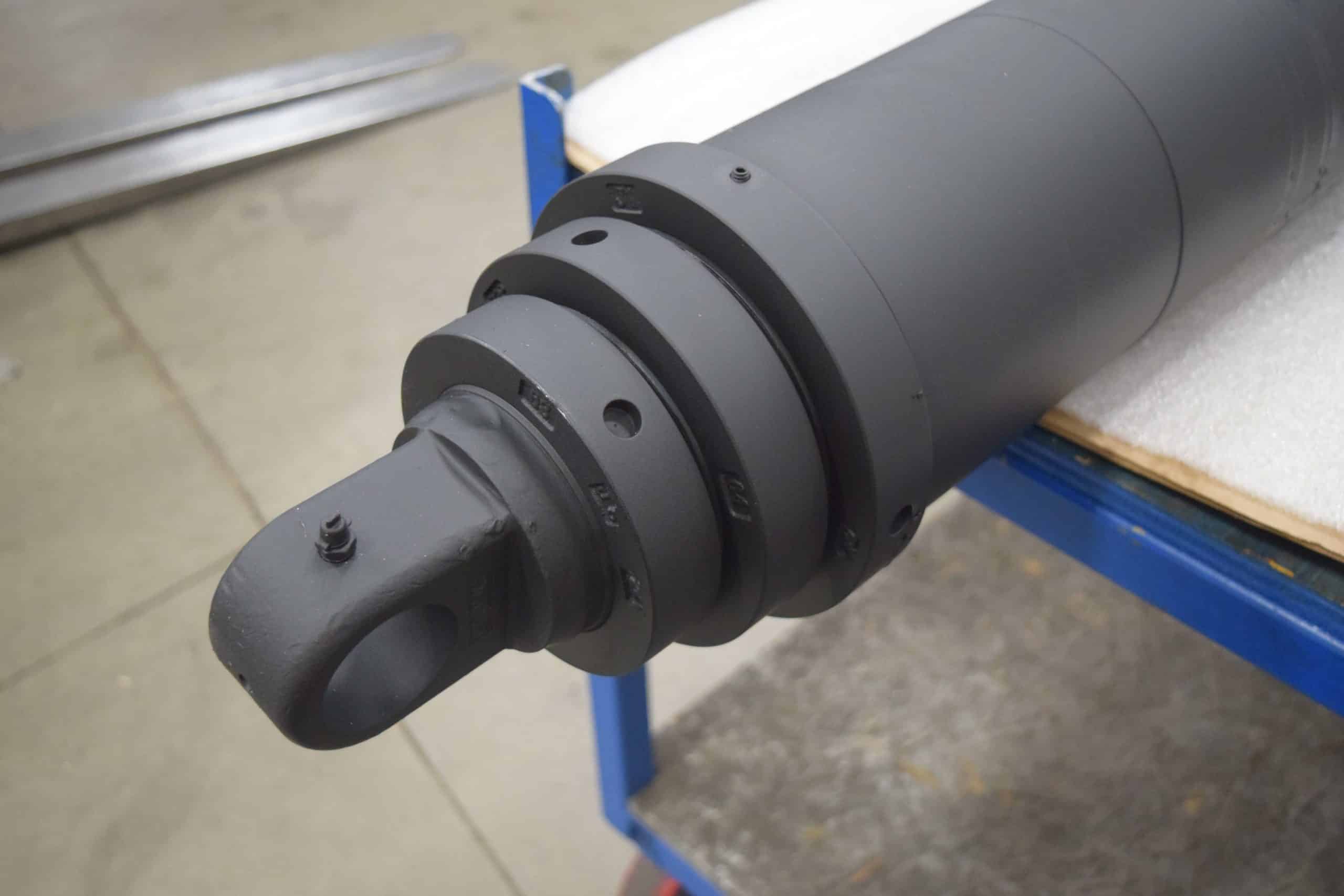

Rod End Mount Type Drilled Thru Lug
Rod Mount Width 1.50″
Rod Pin Size 2.19″
Tele Largest Stage OD 6″
Telescopic Number of Stages 3
Telescopic Stroke 138″

Reference Part Number Reference Name Equipment Manufacturer Equipment Model Replacement Name Cylinder Function
001-2298 Heil Heil — Commercial / Parker Dump Hoist, Body Raise, Tipping
001-3179 Heil Heil — Commercial / Parker Dump Hoist, Body Raise, Tipping
001-3893 Heil Heil — Commercial / Parker Dump Hoist, Body Raise, Tipping
001-4000 Heil Heil — Commercial / Parker Dump Hoist, Body Raise, Tipping
001-4143 Heil Heil — Commercial / Parker Dump Hoist, Body Raise, Tipping
001-6705 Heil Heil — Commercial / Parker Dump Hoist, Body Raise, Tipping
1-2298 Heil Heil HPT63-140 Commercial / Parker Dump Hoist, Body Raise, Tipping
1-3179 Heil Heil HPT63-140 Commercial / Parker Dump Hoist, Body Raise, Tipping
1-3893 Heil Heil HPT63-140 Commercial / Parker Dump Hoist, Body Raise, Tipping
1-4000 Heil Heil HPT63-140 Commercial / Parker Dump Hoist, Body Raise, Tipping
1-4143 Heil Heil HPT63-140 Commercial / Parker Dump Hoist, Body Raise, Tipping
1-6705 Heil Heil HPT63-140 Commercial / Parker Dump Hoist, Body Raise, Tipping
125-2002 Heil, TBEI, Duraclass Heil, TBEI, Duraclass HPT63-140 Commercial / Parker Dump Hoist, Body Raise, Tipping
1252002 Heil, TBEI, Duraclass Heil, TBEI, Duraclass HPT63-140 Commercial / Parker Dump Hoist, Body Raise, Tipping
1HSAT000250018 Commercial / Parker Heil HPT63-140 Commercial / Parker Dump Hoist, Body Raise, Tipping
246-7468 Nexus / Caterpillar Miscellaneous Manufacturers — Commercial / Parker Dump Hoist, Body Raise, Tipping
30238-63-138 Hyco Heil HPT63-140 Commercial / Parker Dump Hoist, Body Raise, Tipping
30251-63-138 Hyco Heil HPT63-140 Commercial / Parker Dump Hoist, Body Raise, Tipping
3771413097 Commercial / Parker Heil HPT63-140 Commercial / Parker Dump Hoist, Body Raise, Tipping
3771413129 Commercial / Parker Heil HPT63-140 Commercial / Parker Dump Hoist, Body Raise, Tipping
3771413215 Commercial / Parker Heil HPT63-140 Commercial / Parker Dump Hoist, Body Raise, Tipping
3771413285 Commercial / Parker Heil HPT63-140 Commercial / Parker Dump Hoist, Body Raise, Tipping
3771413327 Commercial / Parker Heil, TBEI, Duraclass HPT63-140 Commercial / Parker Dump Hoist, Body Raise, Tipping
60251-63-138 Hyco Heil HPT63-140 Commercial / Parker Dump Hoist, Body Raise, Tipping
63-153-140 Custom Hoist Miscellaneous Manufacturers — Commercial / Parker Dump Hoist, Body Raise, Tipping
63-171-139 Custom Hoist Miscellaneous Manufacturers — Commercial / Parker Dump Hoist, Body Raise, Tipping
63-186-139 Custom Hoist Heil HPT63-140 Commercial / Parker Dump Hoist, Body Raise, Tipping
63-202-139 Custom Hoist Miscellaneous Manufacturers — Commercial / Parker Dump Hoist, Body Raise, Tipping
63-27-139 Custom Hoist Heil HPT63-140 Commercial / Parker Dump Hoist, Body Raise, Tipping
63-553-140 Custom Hoist Miscellaneous Manufacturers — Commercial / Parker Dump Hoist, Body Raise, Tipping
63-586-139 Custom Hoist Heil — Commercial / Parker Dump Hoist, Body Raise, Tipping
63-624-139 Custom Hoist Heil — Commercial / Parker Dump Hoist, Body Raise, Tipping
63-886-139 Custom Hoist Heil — Commercial / Parker Dump Hoist, Body Raise, Tipping
70251-63-138 Hyco Heil HPT63-140 Commercial / Parker Dump Hoist, Body Raise, Tipping
70611-63-138 Hyco Heil HPT63-140 Commercial / Parker Dump Hoist, Body Raise, Tipping
71041-63-140 Hyco Heil, TBEI, Duraclass HPT63-140 Commercial / Parker Dump Hoist, Body Raise, Tipping
71564194 Hyva Miscellaneous Manufacturers — Commercial / Parker Dump Hoist, Body Raise, Tipping
FEE 129-3-03460-438A-K1527-BU Hyva Miscellaneous Manufacturers — Commercial / Parker Dump Hoist, Body Raise, Tipping
FEE 6-3-136-BU-SP Hyva Miscellaneous Manufacturers — Commercial / Parker Dump Hoist, Body Raise, Tipping
FEE129-3-03460-438A-K1527-BU Hyva Miscellaneous Manufacturers — Commercial / Parker Dump Hoist, Body Raise, Tipping
FEE6-3-136-BU-SP Hyva Miscellaneous Manufacturers — Commercial / Parker Dump Hoist, Body Raise, Tipping
HPT63140 Hercules Sealing Products, Hercules Bulldog Heil HPT63-140 Commercial / Parker Dump Hoist, Body Raise, Tipping
S63DC-102-138 Commercial / Parker Heil HPT63-140 Commercial / Parker Dump Hoist, Body Raise, Tipping
S63DC-32-138 Commercial / Parker Heil HPT63-140 Commercial / Parker Dump Hoist, Body Raise, Tipping
S63DC-45-138 Commercial / Parker Heil HPT63-140 Commercial / Parker Dump Hoist, Body Raise, Tipping
S63DC-45G-138 Commercial / Parker Heil HPT63-140 Commercial / Parker Dump Hoist, Body Raise, Tipping
S63DC-87-138 Commercial / Parker Heil HPT63-140 Commercial / Parker Dump Hoist, Body Raise, Tipping
SAT63DC138.00-CCDB-59.50 Commercial / Parker Heil HPT63-140 Commercial / Parker Dump Hoist, Body Raise, Tipping
