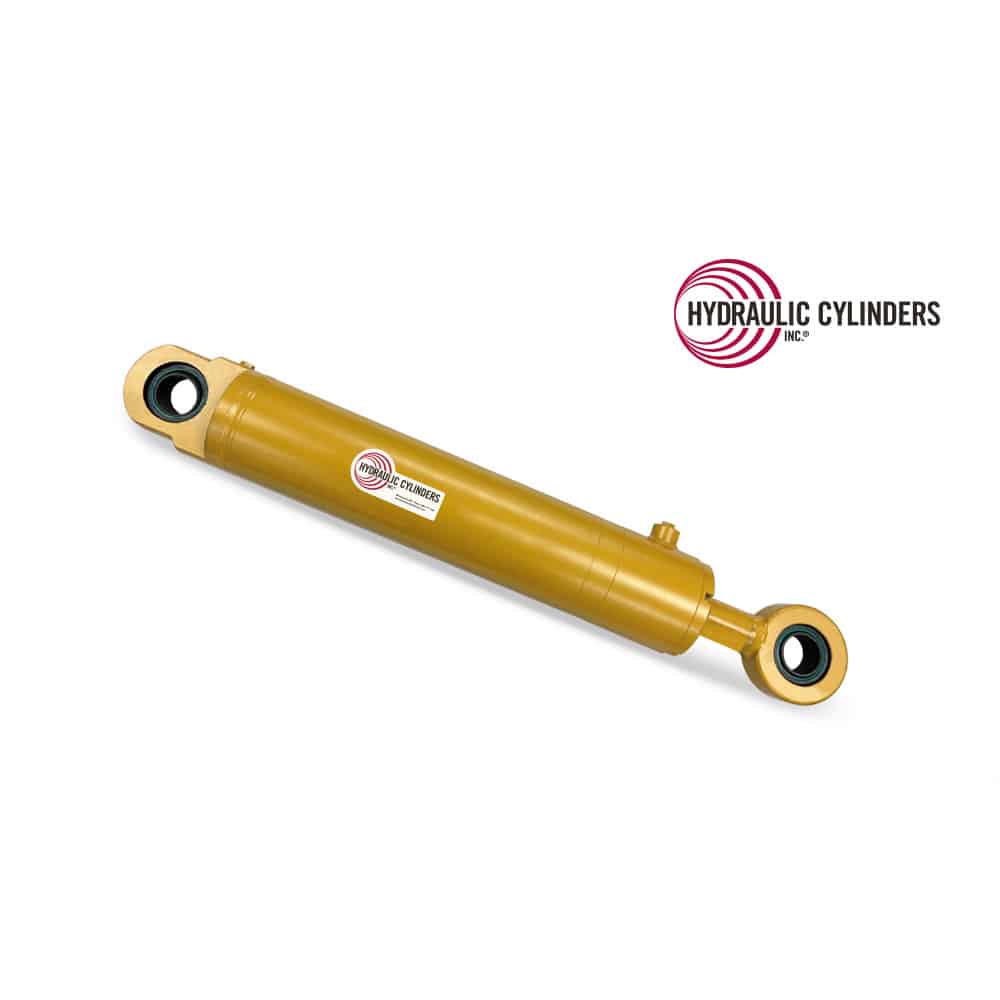

Welded Hydraulic Cylinder (Base Mount: Spherical Bearing, Rod Mount: Spherical Bearing), 4.50 Bore, 55mm Rod, 19.49 Stroke
This 4.50 Bore welded hydraulic cylinder is Made in the USA from all-steel components, this replacement hydraulic cylinder is Performance-Built and Warranty-Backed.
With a welded rod, double-acting design, it delivers reliable lift and stable control across demanding cycles. Designed for frequent lifting in rough outdoor conditions.
FASTSHIP eligible — order by 12:00 CST for same-day shipping.
Dimensions in inches, unless otherwise noted
- Bore: 4.50
- Rod: 55mm
- Stroke: 19.49
- Closed: 35.25
- Open Extended Length: 54.74
- Operating Pressure (PSI): 3000
- Base End Mount Type: Spherical Bearing
- Base Pin Size: 2.00
- Base Mount Width: 1.95
- Rod End Mount Type: Spherical Bearing
- Rod Pin Size: 2.00
- Rod Mount Width: 2.00
- Extend Port/Plunger: -8 SAE ORB
- Retract Port/Plunger: -8 SAE ORB
