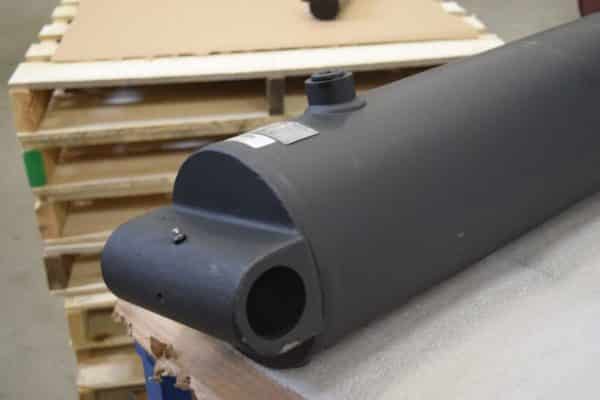

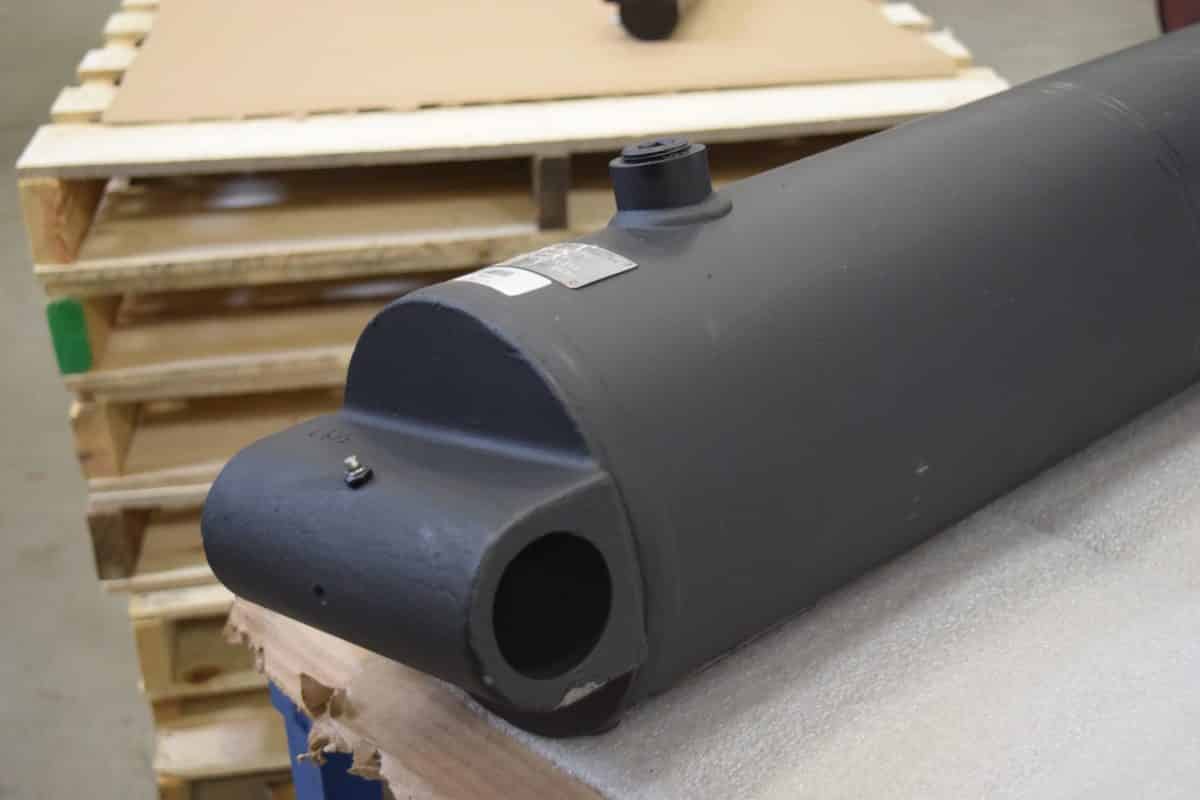

Commercial/Parker, Replacement SAT Dump Hoist Cylinder S74DC-74-135
- This is a replacement telescopic hydraulic cylinder for numerous dump truck makes and models.
- The function of this cylinder is the dump truck hoist, body raise, and tipping.
- This cylinder is a high-quality replacement for the OEM version.
| Weight | 375 lbs |
|---|---|
| Dimensions | 58 × 20 × 16 in |
| Base End Mount Type | Cross-Tube |
| Base Mount Width | 8.25″ |
| Base Pin Size | 2.00″ |
| Closed | 48.43″ |
| Extend Port/Plunger | 1.00″ NPT |
| Open Extended Length | 183.43″ |
| Retract Port/Plunger | 1.00″ NPT |
| Rod End Mount Type | Drilled Thru Lug |
| Rod Mount Width | 2.00″ |
| Rod Pin Size | 2.00″ |
| Tele Largest Stage OD | 7″ |
| Telescopic Number of Stages | 4 |
| Telescopic Stroke | 135″ |
| Reference Part Number | Reference Name | Equipment Manufacturer | Equipment Model | Replacement Name | Cylinder Function |
|---|---|---|---|---|---|
| 10041-74-138 | Hyco | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 1221A-7654-137 | Hyco | Perfection | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 128005 | Hercules Sealing Products, Hercules Bulldog | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 15-01-0111 | Lanau | Lanau | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 15-01-0132 | Lanau | Lanau | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 1503A-7654-135 | Hyco | Marion Mfg | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 1624-2518-3416 | Custom Hoist | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 1HSAT000250024 | Commercial / Parker | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 231-028 | Bailey Sales Corp | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 231028 | Bailey Sales Corp | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 246-7594 | Nexus / Caterpillar | Caterpillar | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 246-7595 | Nexus / Caterpillar | Caterpillar | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 25001074-135 | MAC Trailer | MAC Trailer | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 25002074-135 | MAC Trailer | MAC Trailer | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 30016-74-135 | Hyco | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 30016-74-136 | Hyco | Fruehauf | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 30195-74-136 | Hyco | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 30387-74-135 | Hyco | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 30426-74-136 | Hyco | East Mfg | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 30534-74-135 | Hyco | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 3772514012 | Commercial / Parker | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 3772514016 | Commercial / Parker | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 3772514019 | Commercial / Parker | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 3772514030 | Commercial / Parker | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 3772514038 | Commercial / Parker | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 3772514043 | Commercial / Parker | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 3772514047 | Commercial / Parker | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 3772514048 | Commercial / Parker | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 3772514053 | Commercial / Parker | Benson | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 3772514073 | Commercial / Parker | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 3772514094 | Commercial / Parker | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 3772514125 | Commercial / Parker | Ox Bodies | 74135 | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 3773914002 | Commercial / Parker | Ox Bodies | NS2500 Dump | Commercial / Parker | — |
| 501-25237-03 | East Mfg | East Mfg | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 501-25237-08 | East Mfg | East Mfg | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 501-25237-13 | East Mfg | East Mfg | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 64-8-134 | Custom Hoist | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 7-4-135-A00 | Muncie Power Products | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 700124 | R/S-Godwin Truck Body Co | R/S-Godwin Truck Body Co | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 70016-74-135 | Hyco | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 70016-74-135D | Hyco | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 70016-74-135DE | Hyco | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 70195-74-135 | Hyco | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 70195-74-135D | Hyco | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 70195-74-135E | Hyco | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 70387-74-135 | Hyco | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 70387-74-135D | Hyco | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 70387-74-135DE | Hyco | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 70387-74-135E | Hyco | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 70387-74V135DE | Hyco | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 70575180 | Hyva | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 70575184 | Hyva | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 70ST740000440113500 | Custom Hoist | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 71565177 | Hyva | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 71565178 | Hyva | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 71565184 | Hyva | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 74-1-124S | Custom Hoist | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 74-1-135 | Custom Hoist | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 74-1-137 | Custom Hoist | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 74-1-138 | Custom Hoist | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 74-10-123 | Custom Hoist | Virginian Metals | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 74-10-135 | Custom Hoist | Virginian Metals | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 74-100-135 | Custom Hoist | Virginian Metals | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 74-102-137 | Custom Hoist | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 74-103-137 | Custom Hoist | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 74-136 | East Mfg | East Mfg | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 74-15-135 | Custom Hoist | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 74-16-135 | Custom Hoist | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 74-22-140 | Custom Hoist | Fruehauf | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 74-27-135 | Custom Hoist | Benson | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 74-28-137 | Custom Hoist | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 74-3-135 | Custom Hoist | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 74-31-135 | Custom Hoist | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 74-34-137 | Custom Hoist | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 74-37-135 | Custom Hoist | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 74-401-135 | Custom Hoist | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 74-4011-135 | Custom Hoist | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 74-4401-135 | Custom Hoist | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 74-5401-135 | Custom Hoist | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 74-701-135 | Custom Hoist | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 74135-C | Godwin Mfg | Godwin Mfg | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 74135-C OR 74135-H | Godwin Mfg | Godwin Mfg | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 74135-H | Godwin Mfg | Godwin Mfg | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 74135-SA | Hercules Sealing Products, Hercules Bulldog | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| 9000034 | Mailhot | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| A218630-135 | Marion / Farnsworth | Marion Mfg | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| A59327 | Perfection | Perfection | 74140 | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| A69067 | Perfection | Perfection | 74a140v | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| AK74-4401-135 | AKALIKO USA, by Rockmac Inc, is a part of AKALIKO GLOBAL | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| C-135-7-4 | Mailhot | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| DS12-01-7-4-135-A00 | Muncie Power Products | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| E4-48 | Johnson Hydraulics Mfg Co | Johnson Hydraulics Mfg Co | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| FEE 149-4-03380-231A-K1229 | Hyva | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| FEE 149-4-03380-231A-K1229*O209 | Hyva | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| FEE 7-4-133 | Hyva | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| FEE 7-4-133 Spec. O-Dims / Swivel Bearing | Hyva | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| FEE A149-4-03420-243-K1225 | Hyva | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| FEE A7-4-135-K48 | Hyva | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| FEE A7-4-135-K48-N54 | Hyva | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| FEE-149-4-03380-231A-K1229 | Hyva | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| FEE-7-4-133 | Hyva | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| FEE149-4-03380-231A-K1229 | Hyva | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| FEE7-4-133 | Hyva | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| FME4-48 | Johnson Hydraulics Mfg Co | Johnson Hydraulics Mfg Co | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| FME4-48 / E4-48 | Johnson Hydraulics Mfg Co | Johnson Hydraulics Mfg Co | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| HC74-702-135 | Hydreco | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| HC74-703-135 | Hydreco | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| MH100-74-135P | Metaris, Hydraulex Global | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| MHC-030671 | Fruehauf | Fruehauf | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| NW175394 | Metaris, Hydraulex Global | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| PC0701354HG0034 | Mailhot | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| PS0701354HG0012 | Mailhot | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| S64DC-12-134.5 | Commercial / Parker | Ox Bodies | NS2500 Dump | Commercial / Parker | — |
| S74CC-22-134 | Commercial / Parker | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| S74DC-22-134 | Commercial / Parker | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| S74DC-25-134 | Commercial / Parker | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| S74DC-3-134 | Commercial / Parker | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| S74DC-30-135 | Commercial / Parker | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| S74DC-30-138 | Commercial / Parker | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| S74DC-40-135 | Commercial / Parker | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| S74DC-40-138 | Commercial / Parker | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| S74DC-40G-135 | Commercial / Parker | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| S74DC-42-135 | Commercial / Parker | Benson | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| S74DC-6-135 | Commercial / Parker | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| S74DC-66-135 | Commercial / Parker | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| S74DC-74-135 | Commercial / Parker | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| SAT74DC135.00-AAAB-48.44 | Commercial / Parker | Miscellaneous Manufacturers | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| T74135 | Mabar | Mabar | T74135 | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
| TWC-1411-6 | Fruehauf | Fruehauf | — | Commercial / Parker | Dump Hoist, Body Raise, Tipping |
