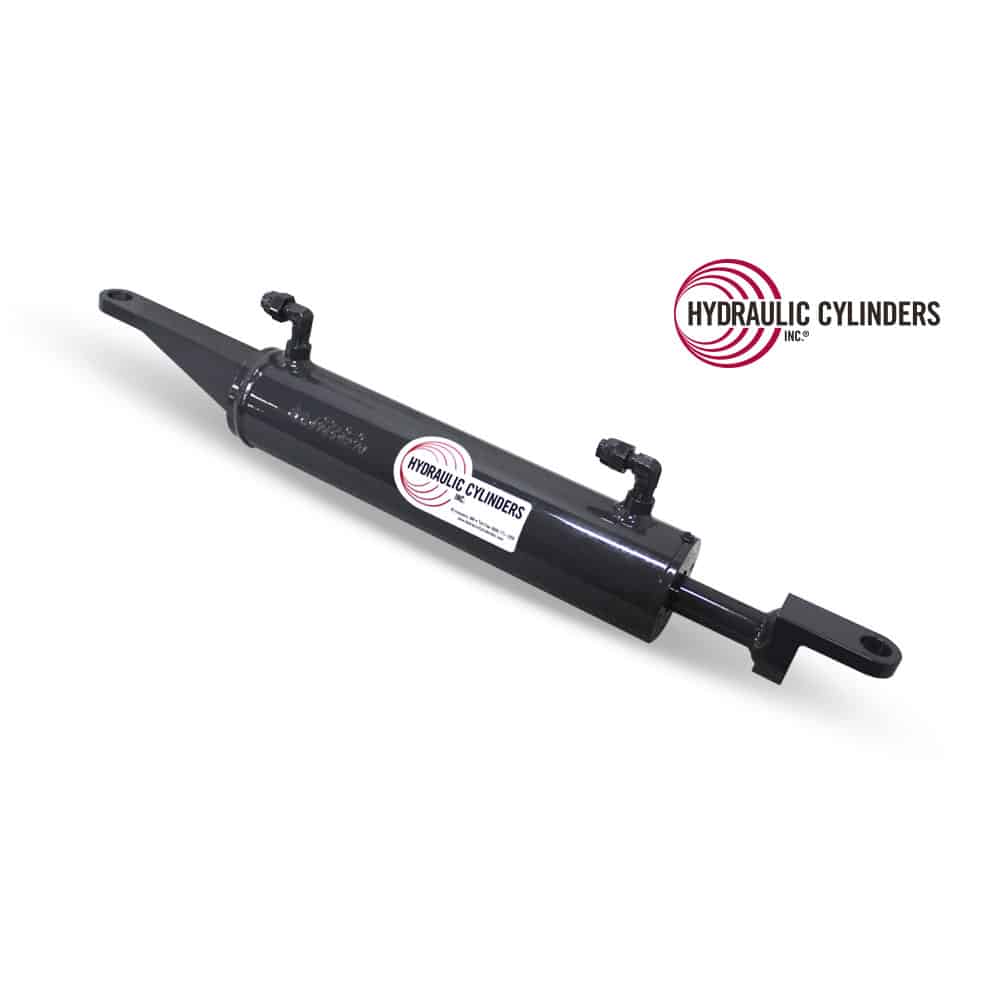

Welded Hydraulic Cylinder (Base Mount: Drilled Thru Lug, Rod Mount: Drilled Thru Lug), 65mm Bore, 25mm Rod, 9.375 Stroke
This 65mm Bore welded hydraulic cylinder is Made in the USA from all-steel components, this replacement hydraulic cylinder is Performance-Built and Warranty-Backed.
With a welded rod, double-acting design, it delivers reliable lift and stable control across demanding cycles. Designed for frequent lifting in rough outdoor conditions.
FASTSHIP eligible — order by 12:00 CST for same-day shipping.
Dimensions in inches, unless otherwise noted
- Bore: 65mm
- Rod: 25mm
- Stroke: 9.375
- Closed: 24.50
- Open Extended Length: 33.875
- Operating Pressure (PSI): 3000
- Base End Mount Type: Drilled Thru Lug
- Base Pin Size: .75
- Base Mount Width: .47
- Rod End Mount Type: Drilled Thru Lug
- Rod Pin Size: .75
- Rod Mount Width: .47
- Extend Port/Plunger: 1/4 BSPP 90D
- Retract Port/Plunger: 1/4 BSPP 90D
