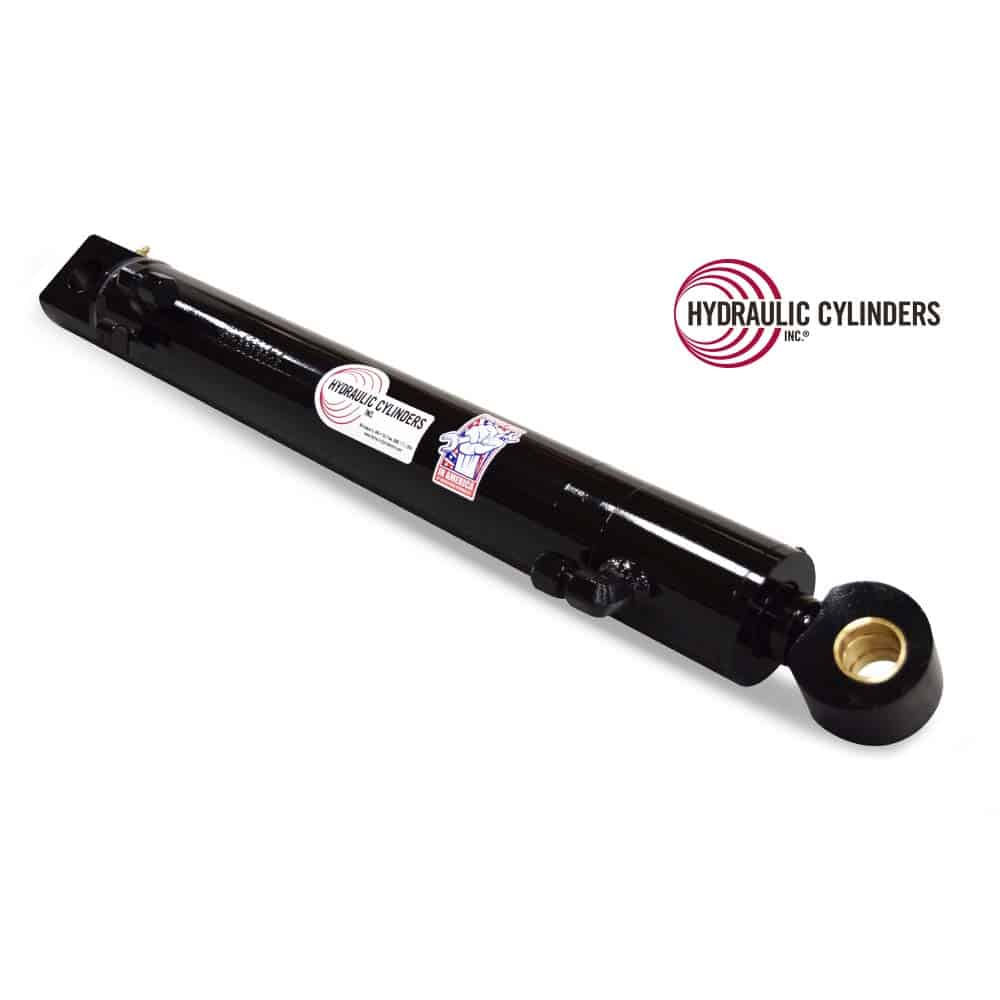

Welded Hydraulic Cylinder (Base Mount: Drilled Thru Lug, Rod Mount: Cross-Tube), 2.75 Bore, 1.625 Rod, 17.75 Stroke
Hydraulic Cylinders, Inc.

Welded Hydraulic Cylinder (Base Mount: Drilled Thru Lug, Rod Mount: Cross-Tube), 2.75 Bore, 1.625 Rod, 17.75 Stroke

Condition: New
Bore: 2.75"
Rod: 1.625"
Stroke: 17.75"
OEM Equipment Link

This 2.75 Bore welded hydraulic cylinder is Made in the USA from all-steel components, this replacement hydraulic cylinder is Performance-Built and Warranty-Backed.

With a welded rod, double-acting design, it delivers reliable lift and stable control across demanding cycles. Designed for frequent lifting in rough outdoor conditions.

FASTSHIP eligible — order by 12:00 CST for same-day shipping.

Dimensions in inches, unless otherwise noted

  • Bore: 2.75
  • Rod: 1.625
  • Stroke: 17.75
  • Closed: 28.125
  • Open Extended Length: 45.875
  • Operating Pressure (PSI): 3000
  • Base End Mount Type: Drilled Thru Lug
  • Base Pin Size: 1.25
  • Base Mount Width: 3.25
  • Rod End Mount Type: Cross-Tube
  • Rod Pin Size: 1.50
  • Rod Mount Width: 1.875
  • Extend Port/Plunger: -8 JIC
  • Retract Port/Plunger: -8 JIC
