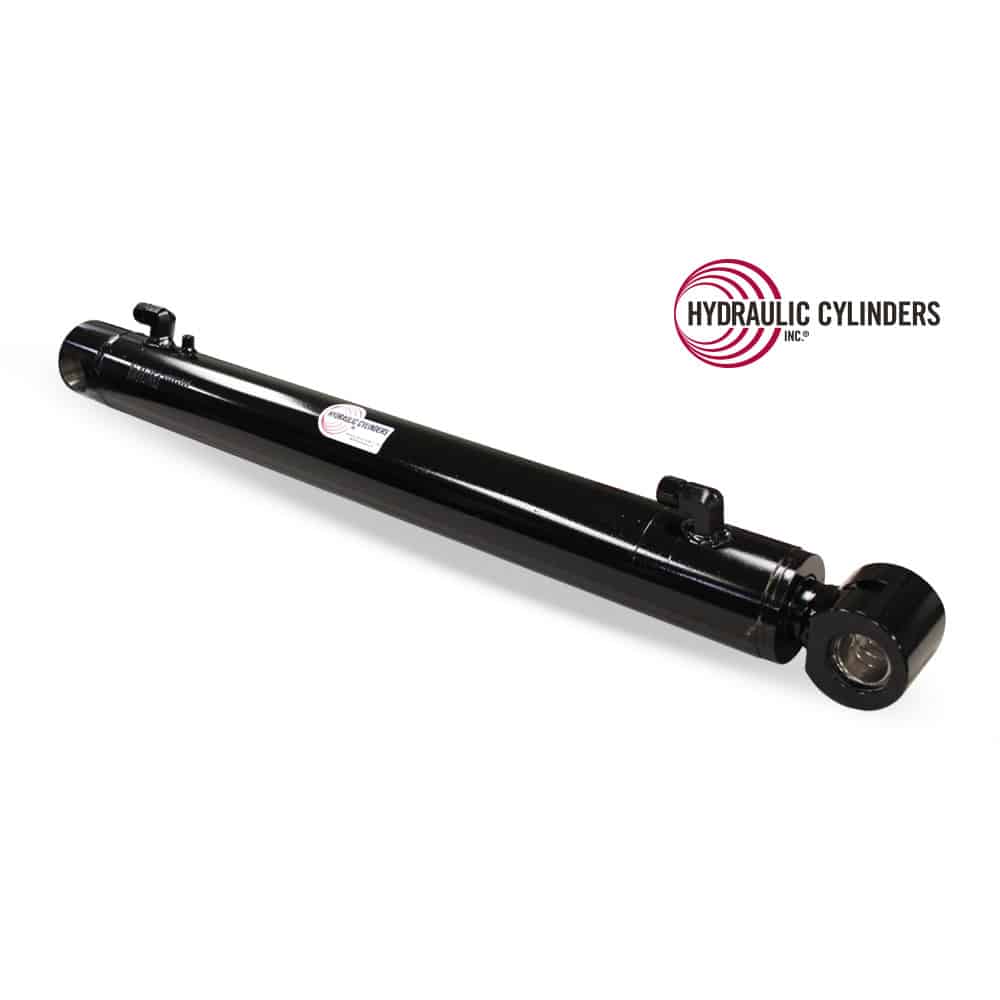

Welded Hydraulic Cylinder (Base Mount: Drilled Thru Base, Rod Mount: Cross-Tube), 3.50 Bore, 2.25 Rod, 29.75 Stroke
This 3.50 Bore welded hydraulic cylinder is Made in the USA from all-steel components, this replacement hydraulic cylinder is Performance-Built and Warranty-Backed.
With a welded rod, double-acting design, it delivers reliable lift and stable control across demanding cycles. Designed for frequent lifting in rough outdoor conditions.
FASTSHIP eligible — order by 12:00 CST for same-day shipping.
Dimensions in inches, unless otherwise noted
- Bore: 3.50
- Rod: 2.25
- Stroke: 29.75
- Closed: 42.625
- Open Extended Length: 72.375
- Operating Pressure (PSI): 3000
- Base End Mount Type: Drilled Thru Base
- Base Pin Size: 2.125
- Base Mount Width: 4.125
- Rod End Mount Type: Cross-Tube
- Rod Pin Size: 1.75
- Rod Mount Width: 3.563
- Extend Port/Plunger: -10 JIC 90D
- Retract Port/Plunger: -10 JIC 90D
