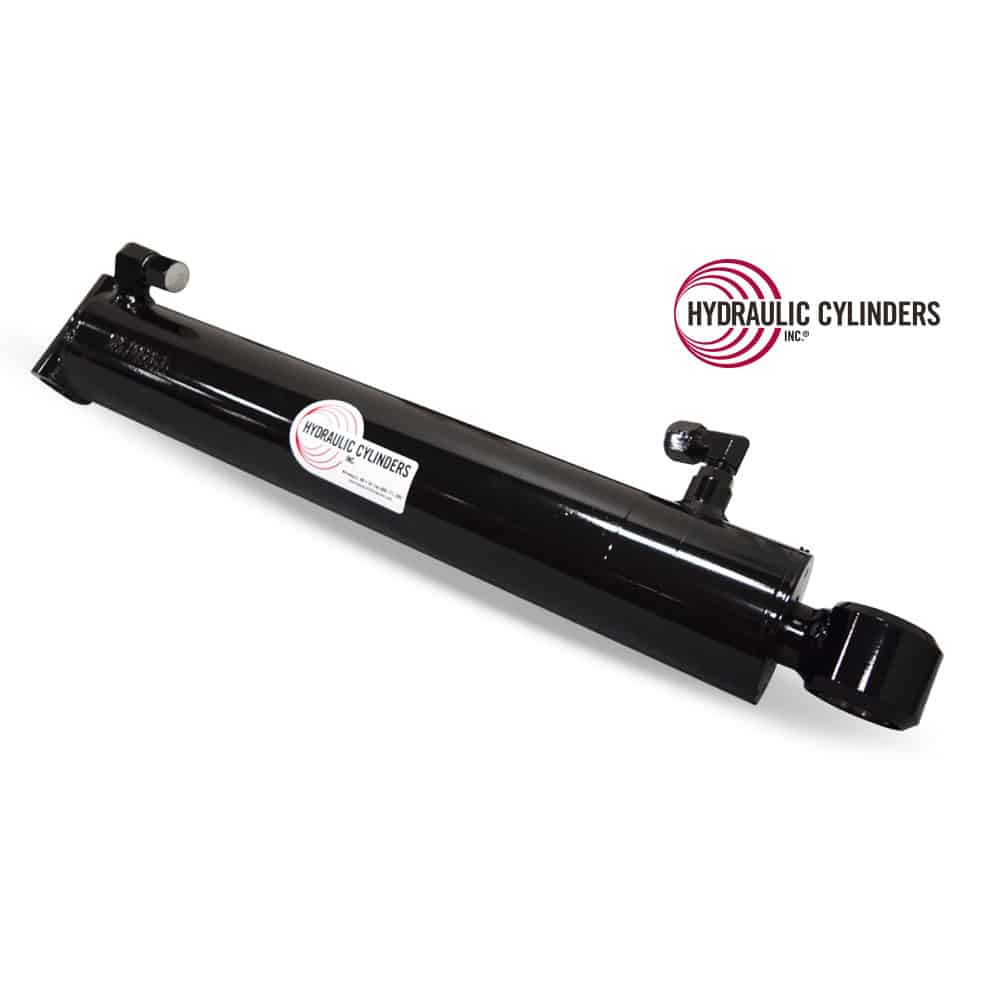

Welded Hydraulic Cylinder (Base Mount: Cross-Tube, Rod Mount: Cross-Tube), 3.25 Bore, 1.50 Rod, 17.875 Stroke
This 3.25 Bore welded hydraulic cylinder is Made in the USA from all-steel components, this replacement hydraulic cylinder is Performance-Built and Warranty-Backed.
With a welded rod, double-acting design, it delivers reliable lift and stable control across demanding cycles. Designed for frequent lifting in rough outdoor conditions.
FASTSHIP eligible — order by 12:00 CST for same-day shipping.
Dimensions in inches, unless otherwise noted
- Bore: 3.25
- Rod: 1.50
- Stroke: 17.875
- Closed: 25.375
- Open Extended Length: 43.25
- Operating Pressure (PSI): 3000
- Base End Mount Type: Cross-Tube
- Base Pin Size: 1.25
- Base Mount Width: 4.00
- Rod End Mount Type: Cross-Tube
- Rod Pin Size: 1.438
- Rod Mount Width: 2.09
- Extend Port/Plunger: -10 JIC 90D
- Retract Port/Plunger: -10 JIC 90D
