Maren ProPAK 2R175 Two Ram Baler
Literature:
PP1752R-A2021-Final-LR.pdf
When there’s serious volume to move, the Maren ProPAK two-ram balers deliver fully automatic operation with high throughput and low electrical consumption. A large “Wide Box” opening handles a wide variety of recyclables — cardboard, paper, fiber, plastics, and scrap metals. Maren’s SmartBale intelligent control saves a complete parameter set per commodity, so an operator reconfigures the baler for a material change by selecting it from a menu (no cheat sheets); an optional SmartBale Mobile Remote adds portable touchscreen monitoring and control.
- Large “Wide Box” clear opening with tongue-and-groove floor; handles post-industrial cardboard, scrap metals, paper, fiber, and plastics.
- Interlocking plate-steel construction; replaceable AR-hardened wear liners.
- Multi-edge replaceable shear blades with extended progressive cutting profile to reduce shear jams.
- Floor-mounted hydraulic reservoir; clogged-filter, high-temp, and low-level sensors.
- Ram and door position transducers automate bale size, finishing, shear-jam prevention, wire placement, and ejection.
- Bale separation door prevents cross-contamination; dual-redundant safety relay system.

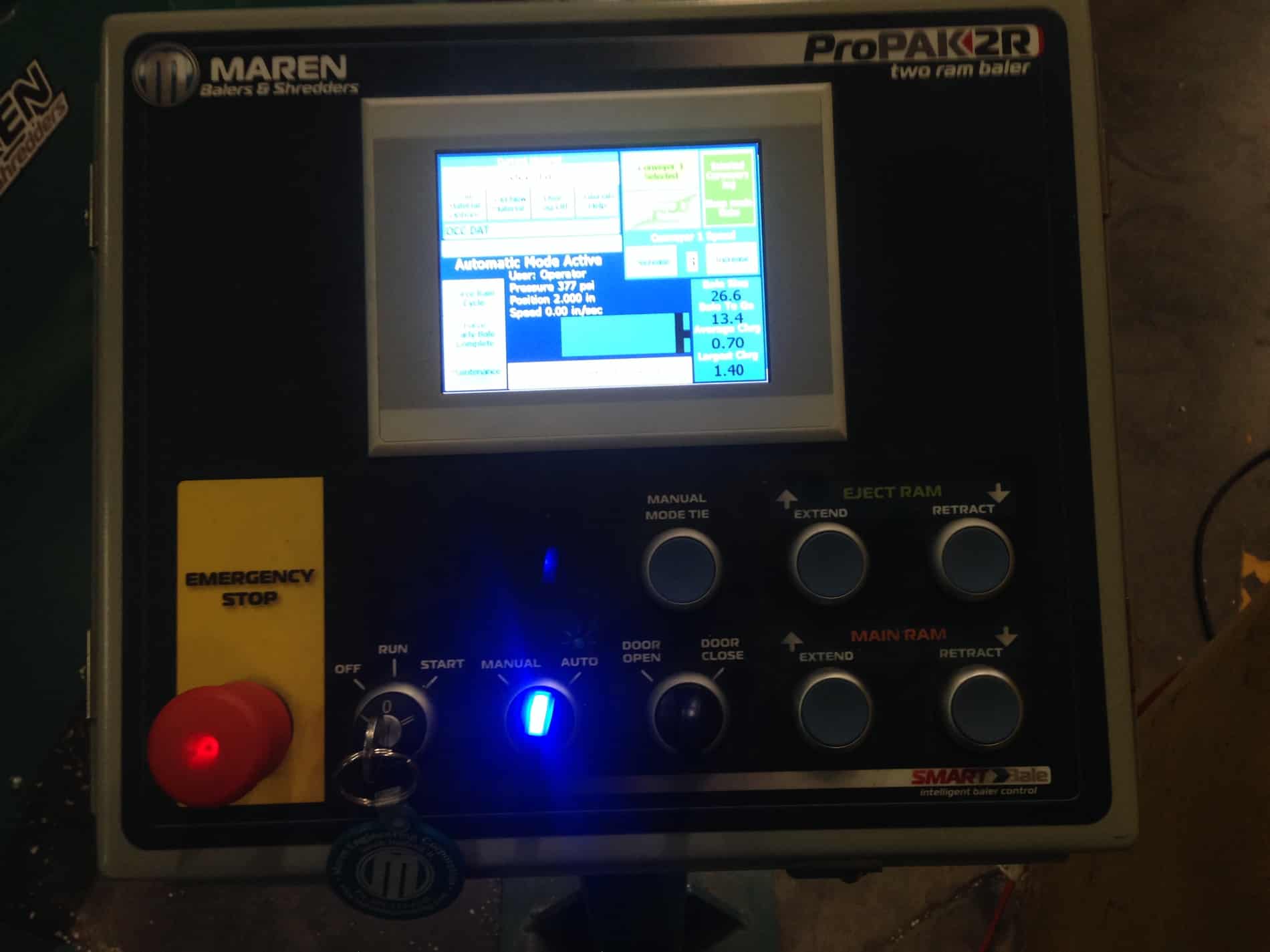

- SmartBale intelligent control: password-protected parameter sets per commodity (wire count/placement, pressure, bale size, photo-eye, conveyor speed, multi-motor).
- Displays bale size, remaining-to-full, average and largest charge.
- Password-protected maintenance/troubleshooting screens.
| Material | Bale Weight |
|---|---|
| OCC | 1,500 lbs. (4.4 t/hr) |
| Magazines | 2,000 lbs. (9) |
| Newspaper | 1,500 lbs. (8) |
| Office Paper | 1,600 lbs. (8) |
| Aluminum Cans | 700 lbs. (2.9) |
| Tin Cans | 1,250 lbs. (5.5) |
| HDPE | 1,125 lbs. (3.4) |
| PET | 1,000 lbs. (2.5) |
