Galbreath Hoist Equipment

Galbreath Inside/Outside Rail (IO) Roll-Off Container Cable Hoist

Condition: Build to Order
OEM Equipment Link

Galbreath Inside/Outside Rail (IO) cable hoists are designed to carry both inside and outside rail containers, maximizing its versatility.

Galbreath Inside/Outside rail hoists are designed for fleets with both types of containers.

  • Dual Outboard Mounted Lift Cylinders (all U-series & AH-series models)
  • Dual In-board mounted lift cylinders (all AF/AFX models)
  • Pintle hitch adaptable rear apron
  • Split light bumpers
  • Heavy duty rear hinge
  • Backup alarm
  • Hoist maintenance props
  • Tarper / valve mounting platform
  • Behind the cab oil reservoir
  • Return oil filter / 3 microns
  • Stationary rear hold down
  • Inside Rail Rollers (U-series IO, IX and AH-series IO models only)
  • Air assist auto folding ICC bumper (auto folding on IX models only)
  • Hydraulic tube plumbing in frame
  • LED – DOT stop, turn and side marker lights
  • Hoist up alarm with signal light
  • Single cylinder reeving system
  • Mount plates and mounting bolts
  • Hydraulic hose plumbing at control valve
  • Direct mount pump
  • Cable end holder
  • Sealed wiring harness
  • Manual control valve levers (2 up to 7 when applicable)
  • Inside air controls
  • Angle Iron on top of main frame rails

  • Pioneer® tarping systems
  • Pintle hooks and towing applications
  • Auxiliary hydraulic hook ups and wet kits
  • Outside rail skid plates
  • Outboard supported side rollers (standard on 75k lb. and AH-series models)
  • Toolboxes
  • Fenders
  • Rear window screen protection
  • Lift axles
  • Auxiliary container stops and rear hold downs
  • Various cable ends
  • Safety and additional LED work lights
  • Speed & RPM limiting parameters
  • Scale systems
  • Backup camera systems
  • Pumps and PTO’s

Model Description
U3-IO-156 SINGLE AXLE–30k–156 MODELS–Inside/Outside Rail
AF75-IO-194 TANDEM AXLE–75k–194 MODELS–Inside/Outside Rail
AF75-IO-174 TANDEM AXLE–75k–174 MODELS–Inside/Outside Rail
AF75-IX-174 TANDEM AXLE–75k–174 MODELS–Extendable Tail 60″, Inside/Outside Rail
AF75-SI-174 TANDEM AXLE–75k–174 MODELS–Inside / Outside / Deadlift, Narrow Outside Rail 35″
AF-IO-174 TANDEM AXLE–60k–174 MODELS–Inside/Outside Rail
AF-IO-194 TANDEM AXLE–60k–194 MODELS–Inside/Outside Rail
AF-IX-174 TANDEM AXLE–60k–174 MODELS–Extendable Tail 60″, Inside/Outside Rail
AF-IX-194 TANDEM AXLE–60k–194 MODELS–Extendable Tail 60″, Inside/Outside Rail

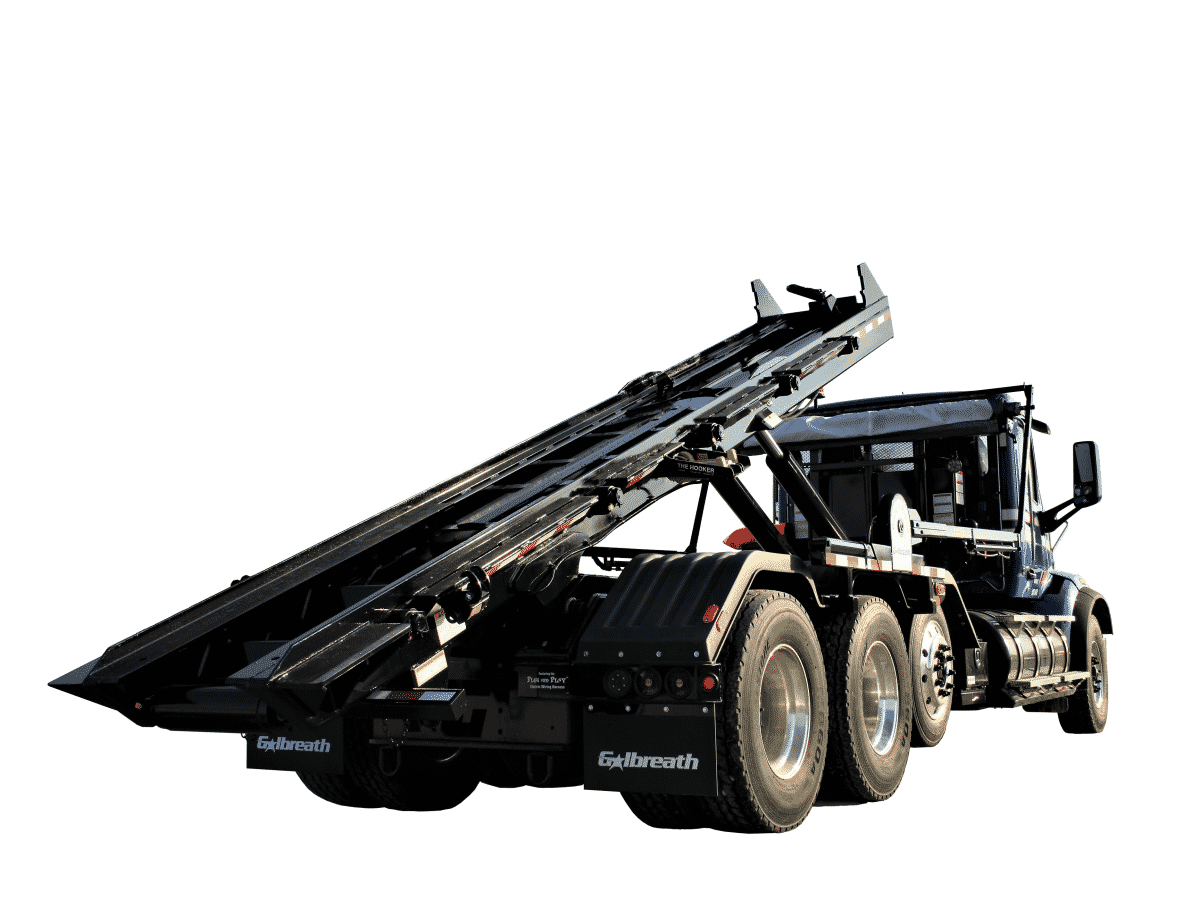

AF-SI-174 TANDEM AXLE–60k–174 MODELS–Inside / Outside / Deadlift, Narrow Outside Rail 35″
AF-SI-186 TANDEM AXLE–60k–186 MODELS–Inside / Outside / Deadlift, Narrow Outside Rail 35″
AF-SI-194 TANDEM AXLE–60k–194 MODELS–Inside / Outside / Deadlift, Narrow Outside Rail 35″
AFXC-IO-174 TANDEM AXLE–60k–174 MODELS–Canada Unit-Recessed Vertical Sheave, Extra Top Coverage–Outside Rollers, Inside/Outside Rail

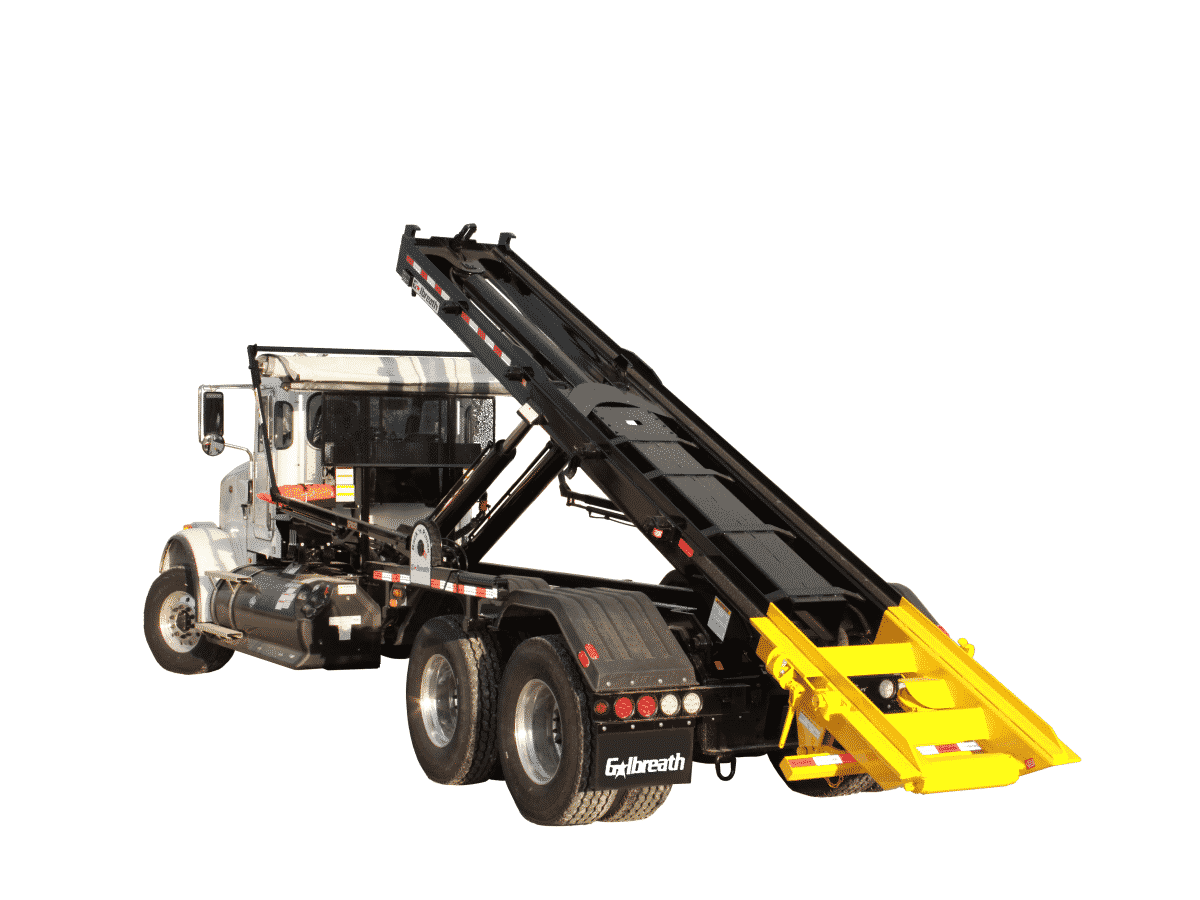

AFX-IO-174 TANDEM AXLE–60k–174 MODELS–Recessed Vertical Sheave, Extra Top Coverage–Inside/Outside Rail
AFX-IO-194 TANDEM AXLE–60k–194 MODELS–Recessed Vertical Sheave, Extra Top Coverage–Inside/Outside Rail
AFX-IX-174 TANDEM AXLE–60k–174 MODELS–Recessed Vertical Sheave, Extra Top Coverage–Extendable Tail 60″, Inside/Outside Rail
AFX-IX-194 TANDEM AXLE–60k–194 MODELS–Recessed Vertical Sheave, Extra Top Coverage–Extendable Tail 60″, Inside/Outside Rail
AFX-IOX-194 TANDEM AXLE–60k–194 MODELS–Recessed Vertical Sheave, Extra Top Coverage–Extendable Tail/Long 55″, Inside/Outside Rail
AH60-IO-08-22 TANDEM AXLE–60k–174 MODELS–8″ Main Frame; 2″ Sub-Frame–Inside/Outside Rail
AH60-IO-08-24 TANDEM AXLE–60k–194 MODELS–8″ Main Frame; 2″ Sub-Frame–Inside/Outside Rail
AH60-IO-10-22 TANDEM AXLE–60k–174 MODELS–10″ Main Frame; No Sub-Frame–Inside/Outside Rail
AH60-IO-10-24 TANDEM AXLE–60k–194 MODELS–10″ Main Frame; No Sub-Frame–Inside/Outside Rail
AH60T-IO-08-22 TANDEM AXLE–60k–174 MODELS–8″ Main Frame; 2″ Sub-Frame–Inside/Outside Rail – Telescopic Lift Cylinders
AH60T-IO-10-22 TANDEM AXLE–60k–174 MODELS–10″ Main Frame; No Sub-Frame–Inside/Outside Rail – Telescopic Lift Cylinders
AH75-IO-08-22 TANDEM AXLE–75k–174 MODELS–8″ Main Frame; 2″ Sub-Frame–Inside/Outside Rail
AH75-IO-08-24 TANDEM AXLE–75k–194 MODELS–8″ Main Frame; 2″ Sub-Frame–Inside/Outside Rail
AH75-IO-10-22 TANDEM AXLE–75k–174 MODELS–10″ Main Frame; No Sub-Frame–Inside/Outside Rail
AH75-IO-10-24 TANDEM AXLE–75k–194 MODELS–10″ Main Frame; No Sub-Frame–Inside/Outside Rail
U5-IO-194 TANDEM AXLE–60k–194 MODELS–Inside/Outside Rail
U5-IR-174 TANDEM AXLE–60k–174 MODELS–8″ Main Frame 2″ Sub-Frame – Inside Rail Only, No Side Rollers
U5-IX-174 TANDEM AXLE–60k–174 MODELS–Extendable Tail 60″, Inside Rollers, Inside/Outside Rail
U5-SI-174 TANDEM AXLE–60k–174 MODELS–Inside / Outside / Deadlift, Narrow Outside Rail 35″

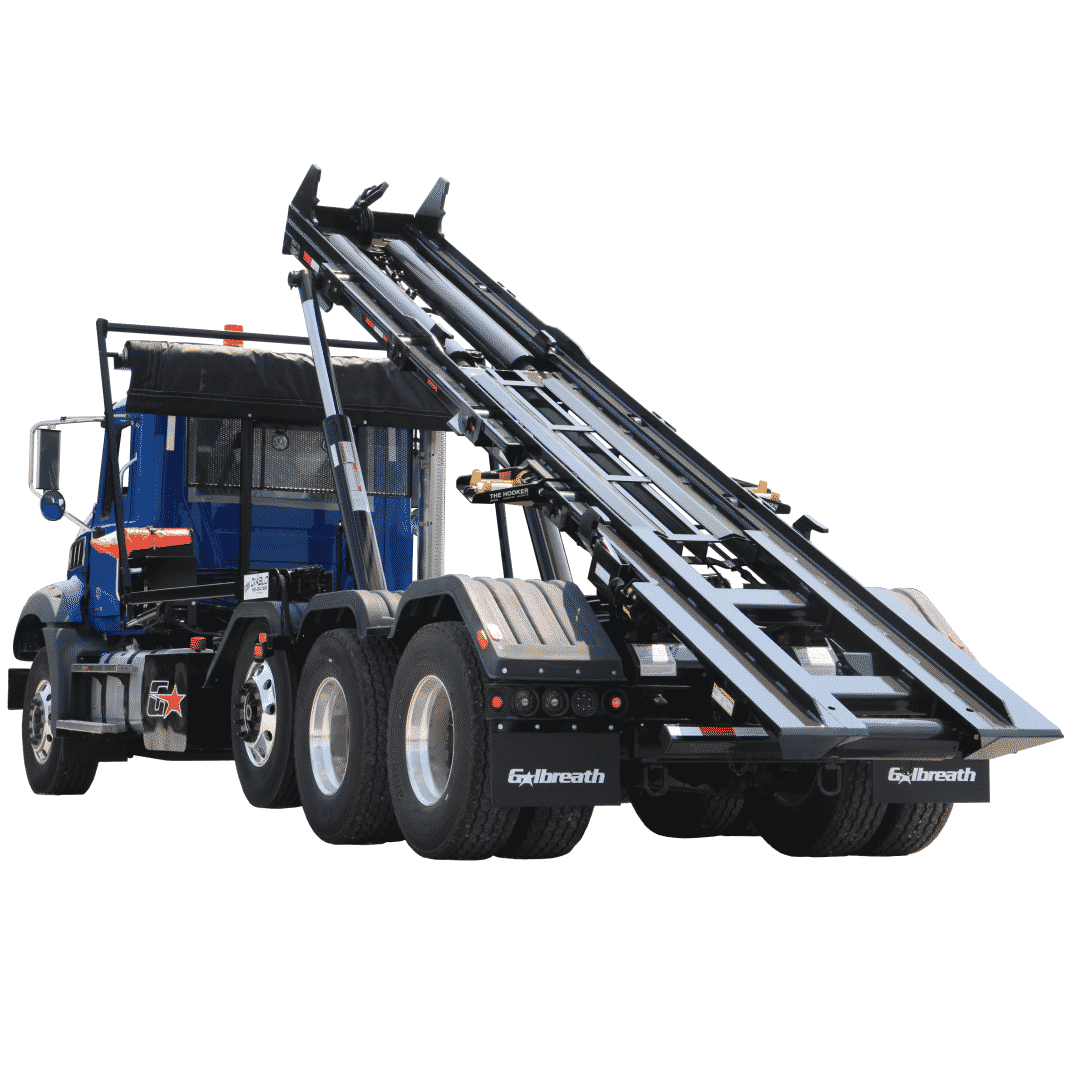

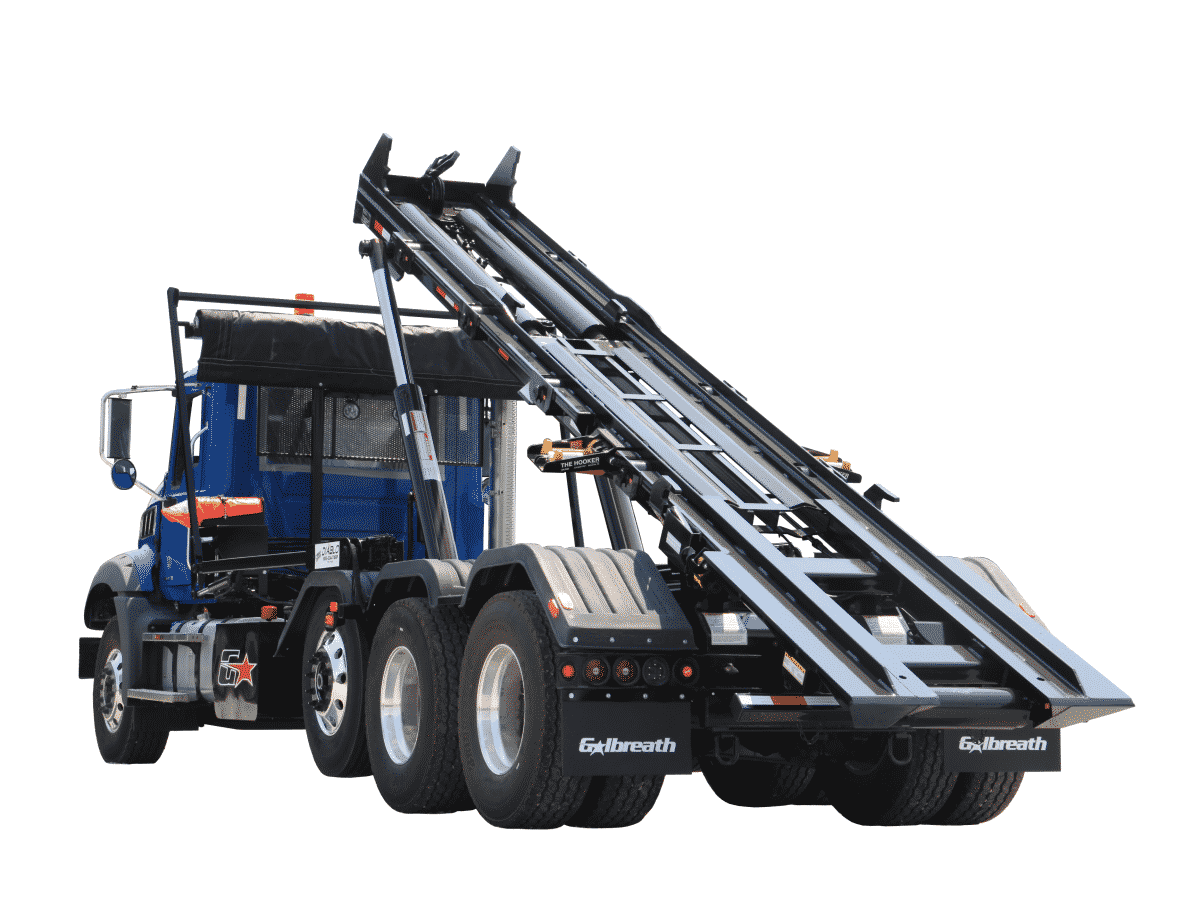

U5-SI-186 TANDEM AXLE–60k–186 MODELS–Inside / Outside / Deadlift, Narrow Outside Rail 35″
U5-SI-194 TANDEM AXLE–60k–194 MODELS–Inside / Outside / Deadlift, Narrow Outside Rail 35″
U5-XI-174 TANDEM AXLE–60k–174 MODELS–Extendable Tail/Long Tail 48″, Inside Rail – 3/4 Trough
U5-IO-194-10 TANDEM AXLE–60k–194 MODELS–10″ Main Frame, No Sub-Frame – Inside/Outside Rail

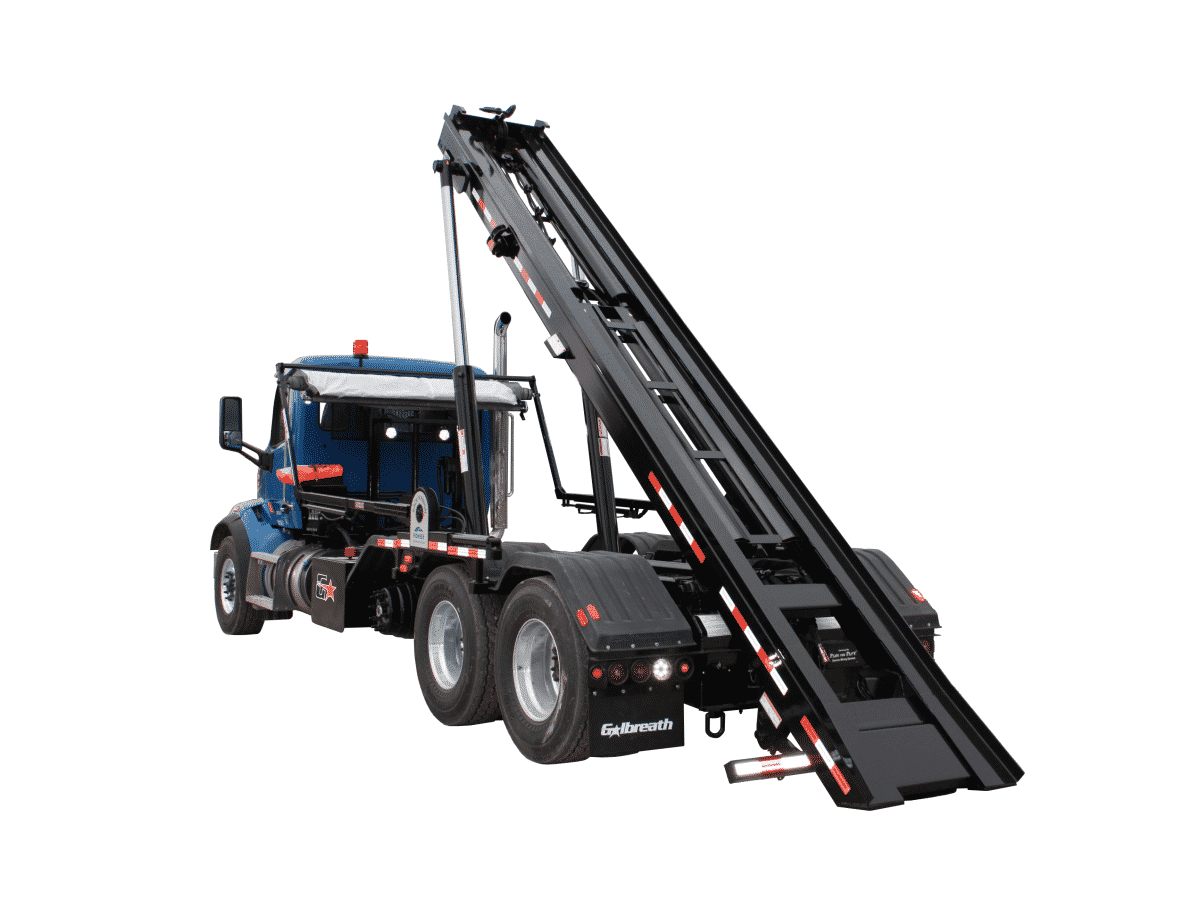

U5-IR-174-10 TANDEM AXLE–60k–174 MODELS–10″ Main Frame, No Sub-Frame – Inside Rail Only

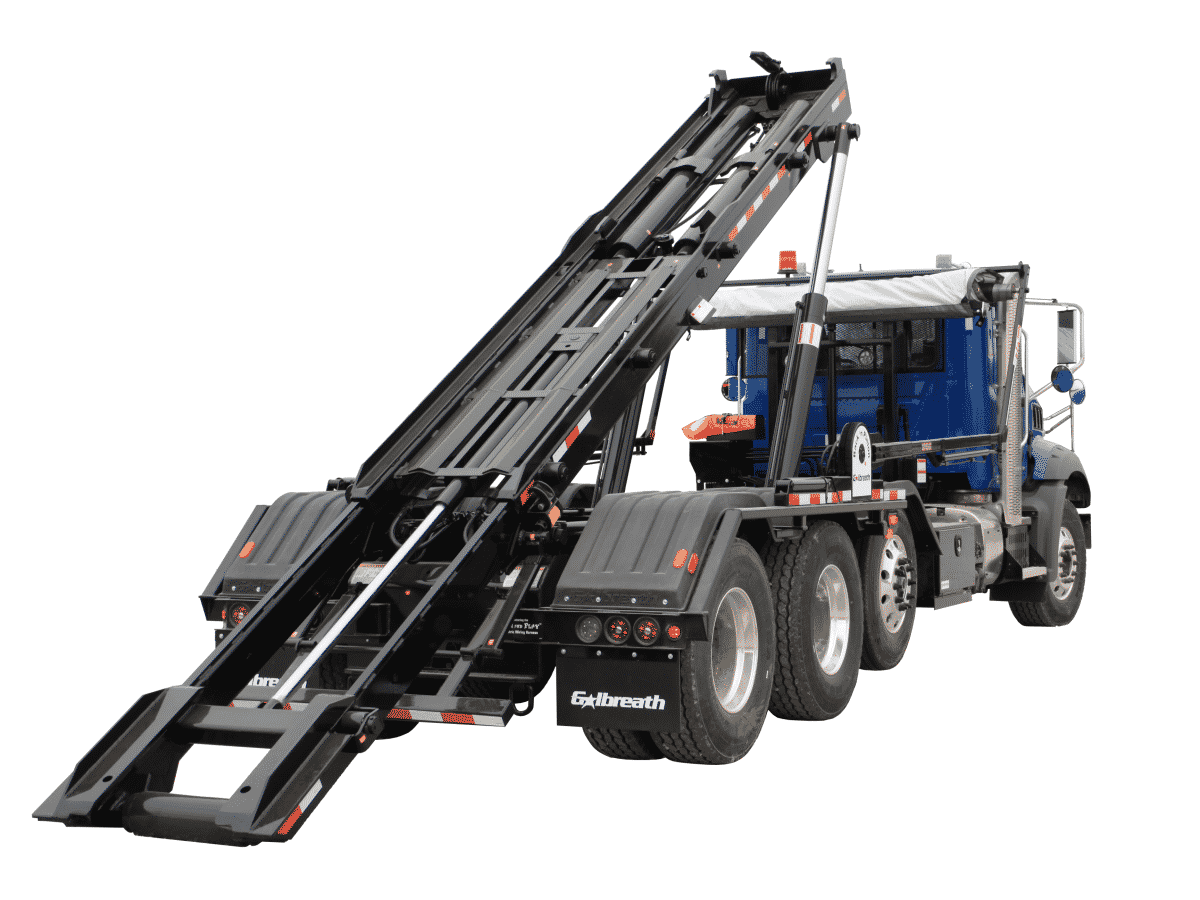

U5-IX-174-10 TANDEM AXLE–60k–174 MODELS–10″ Main Frame, No Sub-Frame – Extendable Tail 60″, Inside Rollers, Inside/Outside Rail

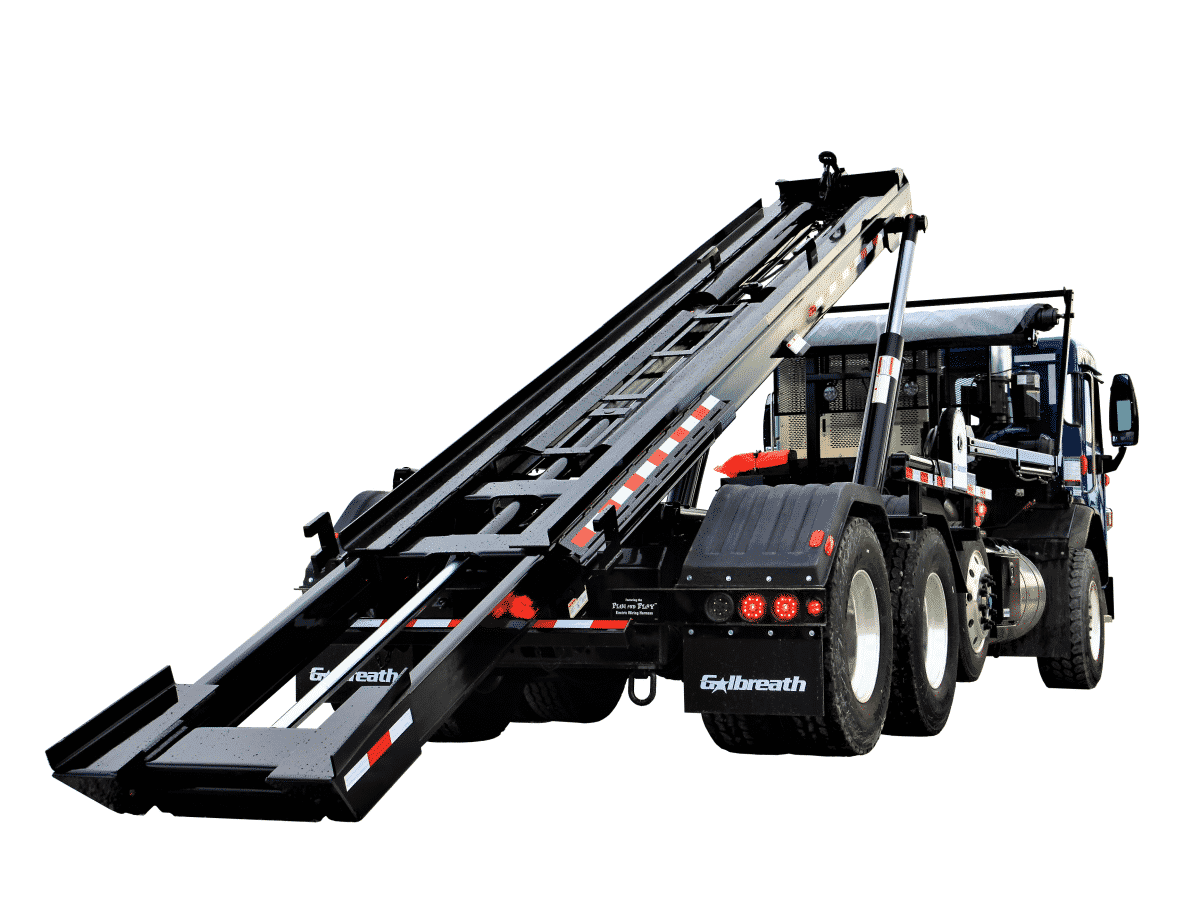

U5-XI-174-10 TANDEM AXLE–60k–174 MODELS–10″ Main Frame, No Sub-Frame – Extendable Tail/Long Tail 48″, Inside Rail – 3/4 Trough
U5-XI-174-10 TANDEM AXLE–60k–174 MODELS–Extendable Tail/Long Tail 48″, Inside Rail – 3/4 Trough
UM-IO-194 TANDEM AXLE–60k–194 MODELS–Michigan 9′ Spread Lift Axle–Inside & Outside Rollers, Inside/Outside Rail
UM-SI-194 TANDEM AXLE–60k–194 MODELS–Michigan 9′ Spread Lift Axle–Inside & Outside Rollers, Narrow Inside/Outside Rail 35″ & Deadlift
UC-IO-22 TANDEM AXLE–60k–174 MODELS–Canada Unit–12″ Main Frame, Inside/Outside Rail w/ Dock Push Off–Telescopic Winch Cylinder – Rod Type Lift Cylinders
UC-IO-24 TANDEM AXLE–60k–194 MODELS–Canada Unit–12″ Main Frame, Inside/Outside Rail w/ Dock Push Off–Telescopic Winch Cylinder – Telescopic Lift Cylinders
U75-IO-174 TANDEM AXLE–75k–174 MODELS–Inside/Outside Rail
U75-IO-194 TANDEM AXLE–75k–194 MODELS–Inside/Outside Rail
UH-IO-174 HEAVY DUTY–TANDEM AXLE–75k–174 MODELS–Inside/Outside Rail – Inside Rollers
UH-IO-194 HEAVY DUTY–TANDEM AXLE–75k–194 MODELS–Inside/Outside Rail – Inside Rollers
UH-LTIO-176 HEAVY DUTY–TANDEM AXLE–75k–176 MODELS–Long Box, Inside/Outside Rail–13k Lift Axle & 20k Rear Mounted Lift Axles *Required*
UH-LTIO-195 HEAVY DUTY–TANDEM AXLE–75k–195 MODELS–Long Box, Inside/Outside Rail–13k Lift Axle & 20k Rear Mounted Lift Axles *Required*
UH-L2TIO-195 HEAVY DUTY–TANDEM AXLE–75k–195 MODELS–Long Box, Inside/Outside Rail–(2) 13k Lift Axles & 20k Rear Mounted Lift Axle *Required*
UT-IO-174 TANDEM AXLE–60k–174 MODELS–Inside/Outside Rail-Telescopic Lift Cylinders
UT-IO-194 TANDEM AXLE–60k–194 MODELS–Inside/Outside Rail-Telescopic Lift Cylinders
