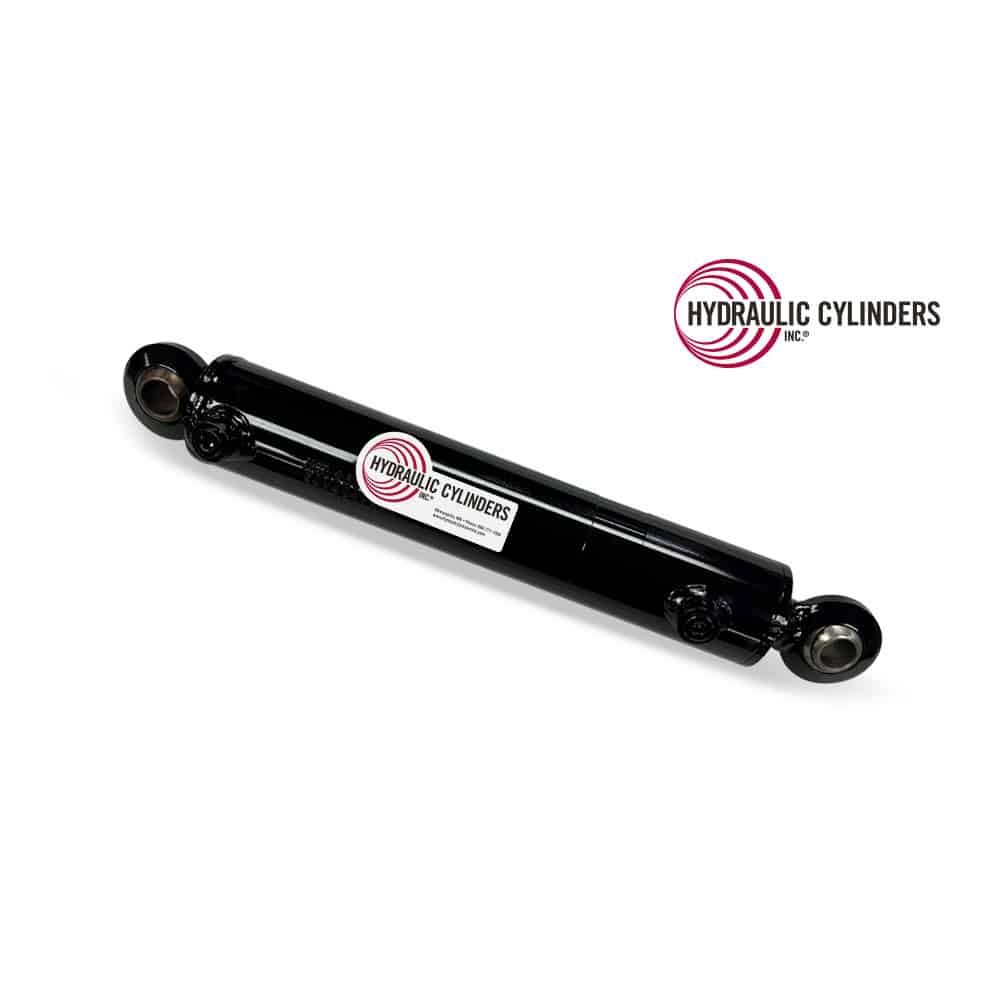

Welded Hydraulic Cylinder (Base: Spherical Bearing, Rod: Spherical Bearing): 2.50 Bore, 1.50 Rod, 11.25 Stroke, .875 Pin
This 2.50 Bore x 11.25 Stroke welded hydraulic cylinder is Made in the USA from all-steel components, this replacement hydraulic cylinder is Performance-Built and Warranty-Backed.
With a welded rod, double-acting design, it delivers reliable lift and stable control across demanding cycles. Designed for frequent lifting in rough outdoor conditions.
FASTSHIP eligible — order by 12:00 CST for same-day shipping.
Dimensions in inches, unless otherwise noted
- Bore: 2.50
- Rod: 1.50
- Stroke: 11.25
- Closed: 18.375
- Open Extended Length: 29.625
- Operating Pressure (PSI): 2500
- Base End Mount Type: Spherical Bearing
- Base Pin Size: .875
- Base Mount Width: 1.375
- Rod End Mount Type: Spherical Bearing
- Rod Pin Size: .875
- Rod Mount Width: 1.375
- Extend Port/Plunger: -6 SAE ORB
- Retract Port/Plunger: -6 SAE ORB
