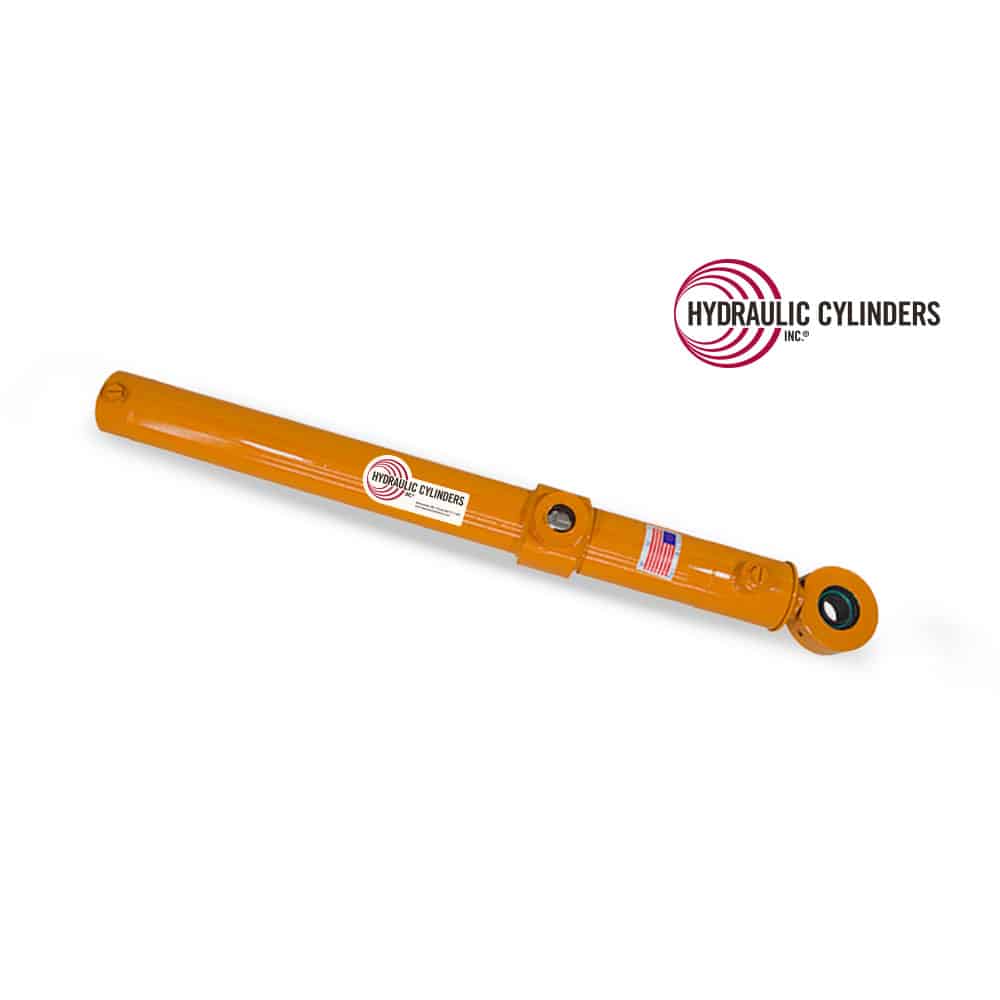

Welded Hydraulic Cylinder (Base Mount: Trunnion), 3.25 Bore, 1.75 Rod, 32.188 Stroke
This 3.25 Bore welded hydraulic cylinder is Made in the USA from all-steel components, this replacement hydraulic cylinder is Performance-Built and Warranty-Backed.
With a welded rod, double-acting design, it delivers reliable lift and stable control across demanding cycles. Designed for frequent lifting in rough outdoor conditions.
FASTSHIP eligible — order by 12:00 CST for same-day shipping.
Dimensions in inches, unless otherwise noted
- Bore: 3.25
- Rod: 1.75
- Stroke: 32.188
- Closed: 42.70
- Open Extended Length: 74.888
- Base End Mount Type: Trunnion
- Base Pin Size: 1.50
- Rod Pin Size: 1.50
- Rod Mount Width: 2.25
- Extend Port/Plunger: -12 SAE ORB
- Retract Port/Plunger: -12 SAE ORB
