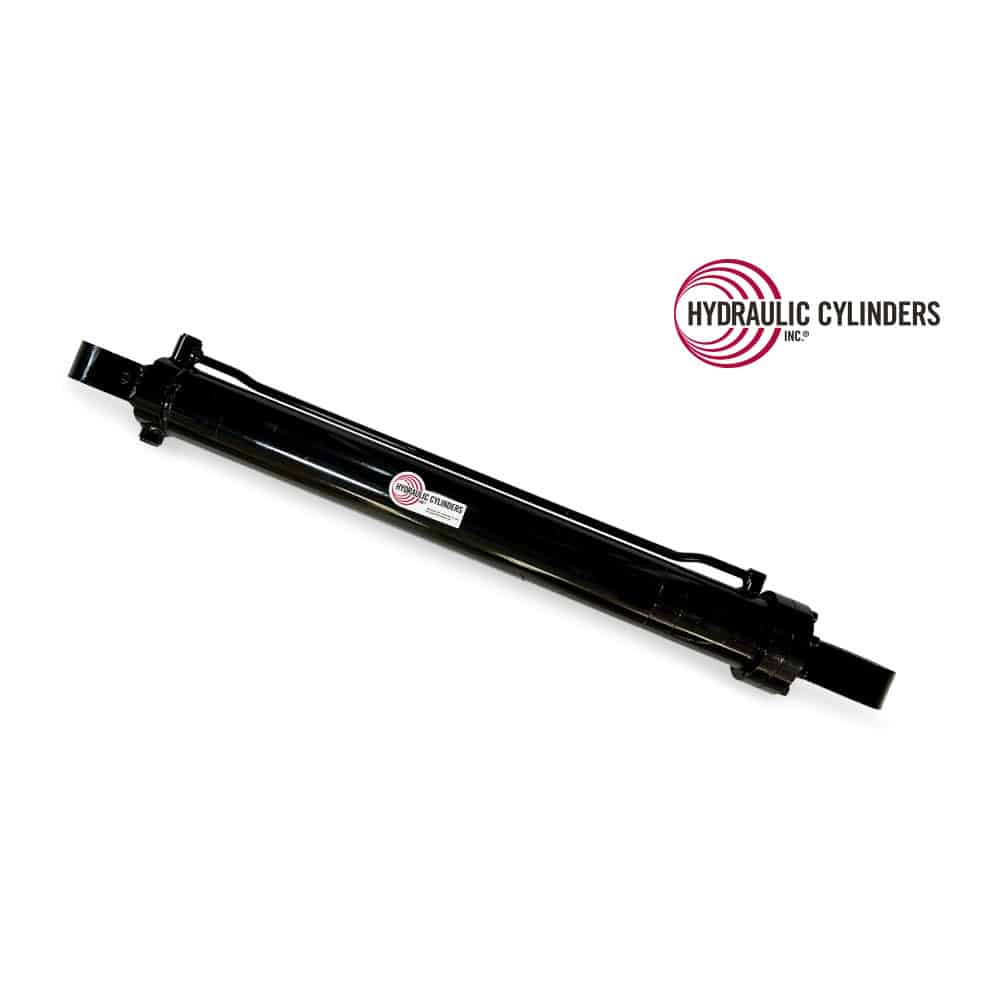

Welded Hydraulic Cylinder (Base Mount: Spherical Bearing, Rod Mount: Spherical Bearing), 4.00 Bore, 2.500 Rod, 35.00 Stroke
This 4.00 Bore welded hydraulic cylinder is Made in the USA from all-steel components, this replacement hydraulic cylinder is Performance-Built and Warranty-Backed.
With a welded rod, double-acting design, it delivers reliable lift and stable control across demanding cycles. Designed for frequent lifting in rough outdoor conditions.
FASTSHIP eligible — order by 12:00 CST for same-day shipping.
Dimensions in inches, unless otherwise noted
- Bore: 4.00
- Rod: 2.500
- Stroke: 35.00
- Closed: 51.00
- Open Extended Length: 86.00
- Operating Pressure (PSI): 3000
- Base End Mount Type: Spherical Bearing
- Base Pin Size: 2.50
- Base Mount Width: 2.50
- Rod End Mount Type: Spherical Bearing
- Rod Pin Size: 2.50
- Rod Mount Width: 2.50
- Extend Port/Plunger: -12 SAE ORB
- Retract Port/Plunger: -12 SAE ORB
