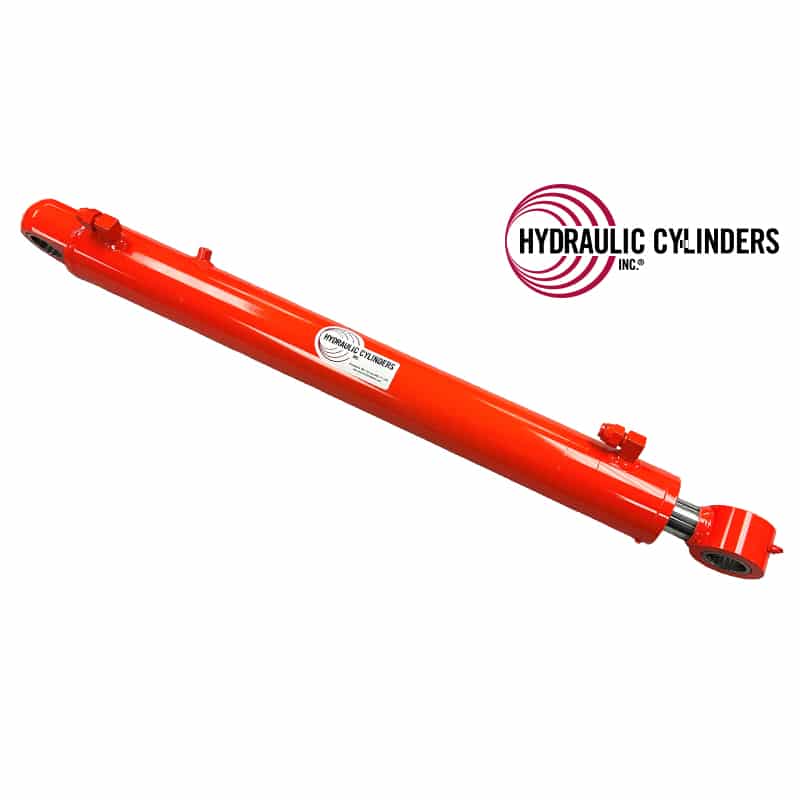

Welded Hydraulic Cylinder (Base Mount: Spherical Bearing, Rod Mount: Spherical Bearing), 2.75 Bore, 40mm Rod, 22.875 Stroke
This 2.75 Bore welded hydraulic cylinder is Made in the USA from all-steel components, this replacement hydraulic cylinder is Performance-Built and Warranty-Backed.
With a welded rod, double-acting design, it delivers reliable lift and stable control across demanding cycles. Designed for frequent lifting in rough outdoor conditions.
FASTSHIP eligible — order by 12:00 CST for same-day shipping.
Dimensions in inches, unless otherwise noted
- Bore: 2.75
- Rod: 40mm
- Stroke: 22.875
- Closed: 34.70
- Open Extended Length: 57.575
- Operating Pressure (PSI): 3000
- Base End Mount Type: Spherical Bearing
- Base Pin Size: 40mm
- Base Mount Width: 1.97
- Rod End Mount Type: Spherical Bearing
- Rod Pin Size: 40mm
- Rod Mount Width: 1.97
- Extend Port/Plunger: 3/8 BSPP 90D
- Retract Port/Plunger: 3/8 BSPP 90D
