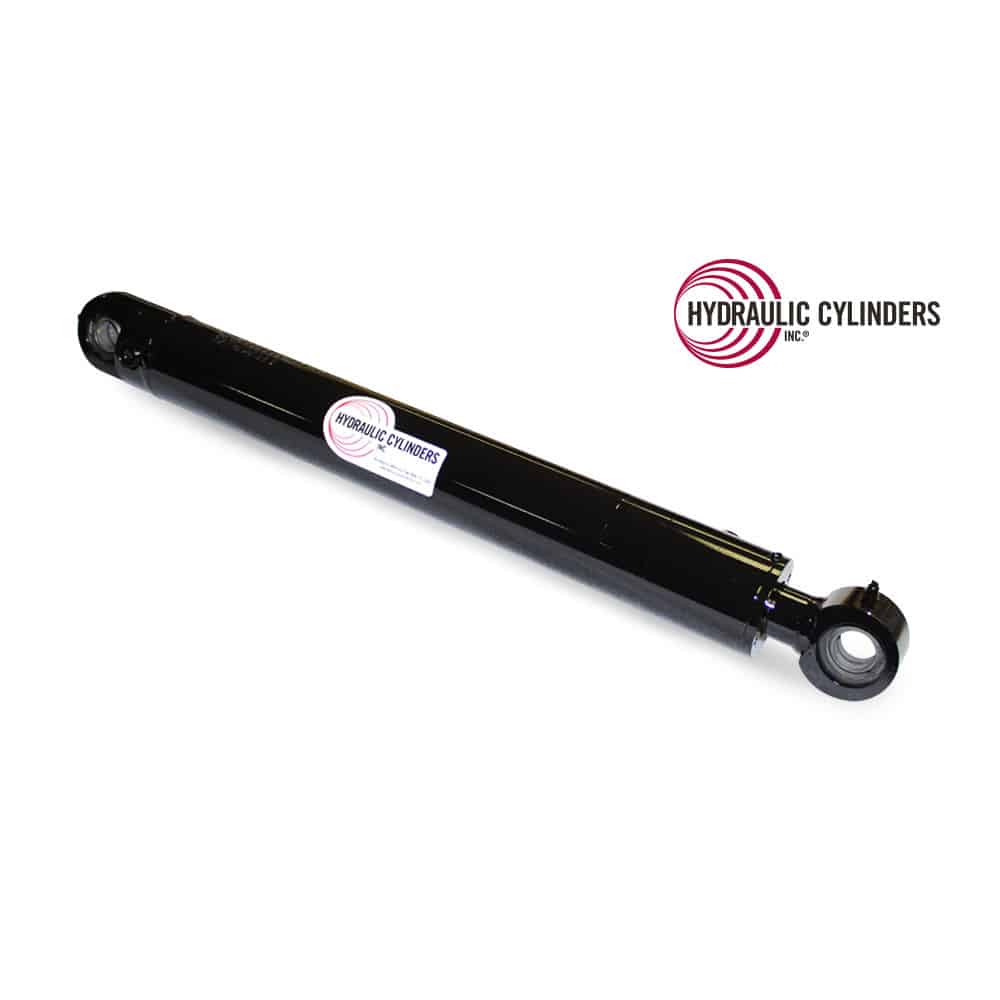

Welded Hydraulic Cylinder (Base Mount: Spherical Bearing, Rod Mount: Spherical Bearing), 2.25 Bore, 36mm Rod, 16.75 Stroke
This 2.25 Bore welded hydraulic cylinder is Made in the USA from all-steel components, this replacement hydraulic cylinder is Performance-Built and Warranty-Backed.
With a welded rod, double-acting design, it delivers reliable lift and stable control across demanding cycles. Designed for frequent lifting in rough outdoor conditions.
FASTSHIP eligible — order by 12:00 CST for same-day shipping.
Dimensions in inches, unless otherwise noted
- Bore: 2.25
- Rod: 36mm
- Stroke: 16.75
- Closed: 25.125
- Open Extended Length: 41.875
- Operating Pressure (PSI): 2500
- Base End Mount Type: Spherical Bearing
- Base Pin Size: 1.00
- Base Mount Width: 1.25
- Rod End Mount Type: Spherical Bearing
- Rod Pin Size: 1.00
- Rod Mount Width: 1.525
- Extend Port/Plunger: -6 SAE ORB
- Retract Port/Plunger: -6 SAE ORB 90D
