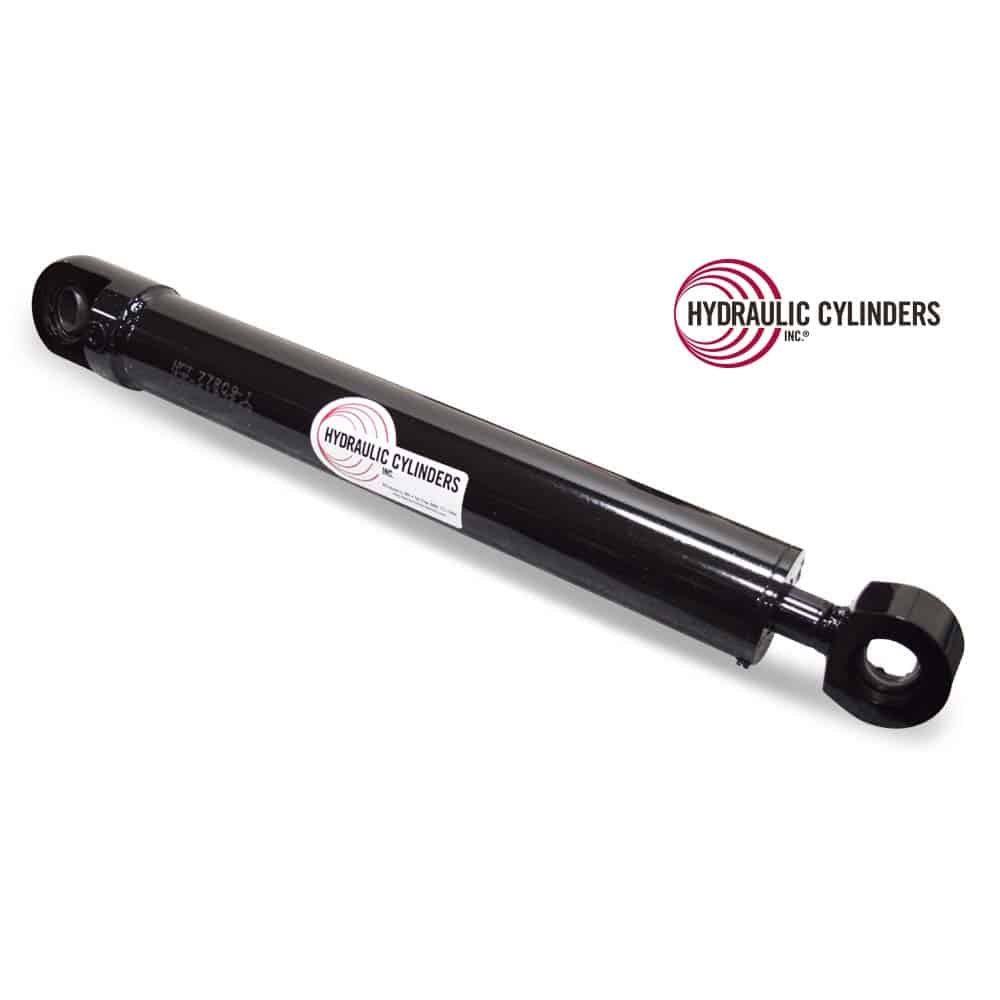

Welded Hydraulic Cylinder (Base Mount: Spherical Bearing, Rod Mount: Spherical Bearing), 2.00 Bore, 1.00 Rod, 13.37 Stroke
This 2.00 Bore welded hydraulic cylinder is Made in the USA from all-steel components, this replacement hydraulic cylinder is Performance-Built and Warranty-Backed.
With a welded rod, double-acting design, it delivers reliable lift and stable control across demanding cycles. Designed for frequent lifting in rough outdoor conditions.
FASTSHIP eligible — order by 12:00 CST for same-day shipping.
Dimensions in inches, unless otherwise noted
- Bore: 2.00
- Rod: 1.00
- Stroke: 13.37
- Closed: 21.25
- Open Extended Length: 34.62
- Base End Mount Type: Spherical Bearing
- Base Pin Size: 1.00
- Rod End Mount Type: Spherical Bearing
- Rod Pin Size: 1.00
