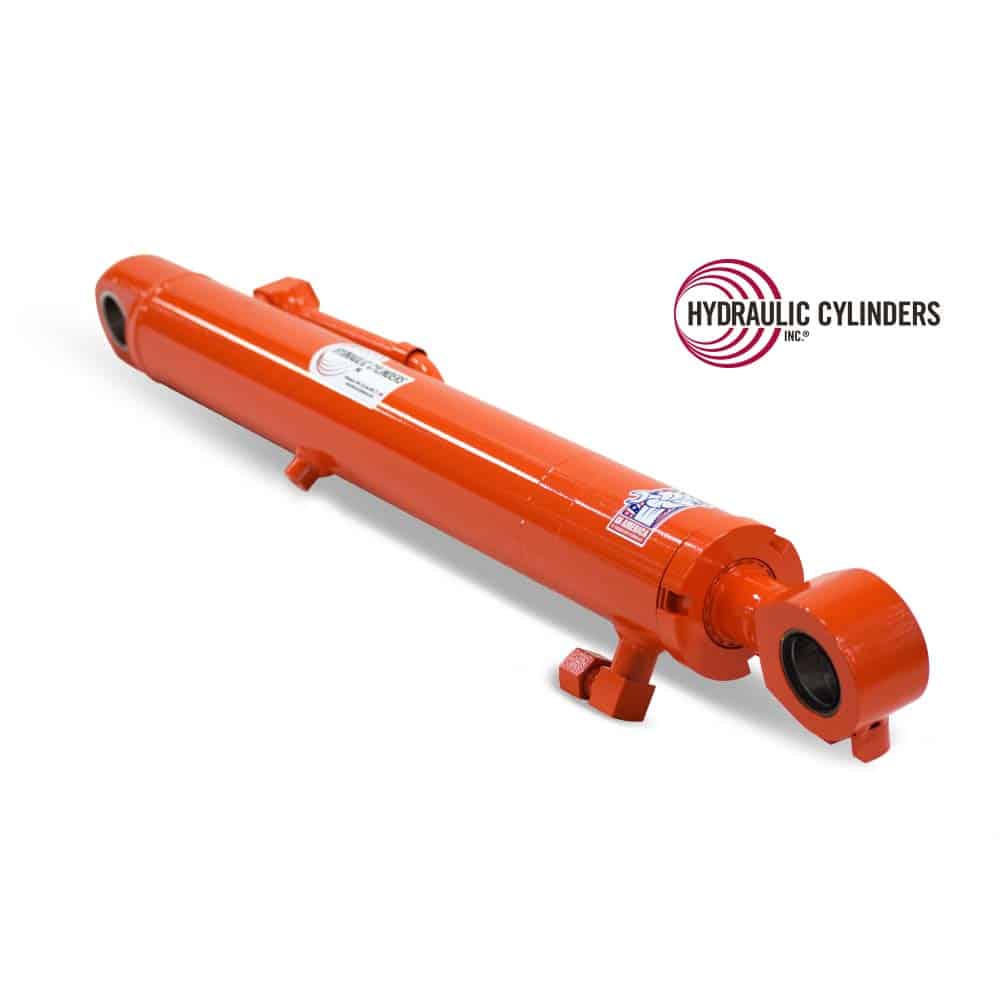

Welded Hydraulic Cylinder (Base Mount: Drilled Thru Lug, Rod Mount: Drilled Thru Lug), 70mm Bore, 40mm Rod, 20.49 Stroke
This 70mm Bore welded hydraulic cylinder is Made in the USA from all-steel components, this replacement hydraulic cylinder is Performance-Built and Warranty-Backed.
With a welded rod, double-acting design, it delivers reliable lift and stable control across demanding cycles. Designed for frequent lifting in rough outdoor conditions.
FASTSHIP eligible — order by 12:00 CST for same-day shipping.
Dimensions in inches, unless otherwise noted
- Bore: 70mm
- Rod: 40mm
- Stroke: 20.49
- Closed: 32.17
- Open Extended Length: 52.66
- Operating Pressure (PSI): 3000
- Base End Mount Type: Drilled Thru Lug
- Base Pin Size: 1.58
- Base Mount Width: 1.96
- Rod End Mount Type: Drilled Thru Lug
- Rod Pin Size: 1.587
- Rod Mount Width: 1.95
- Extend Port/Plunger: 1/2 BSPP
- Retract Port/Plunger: 1/2 BSPP
