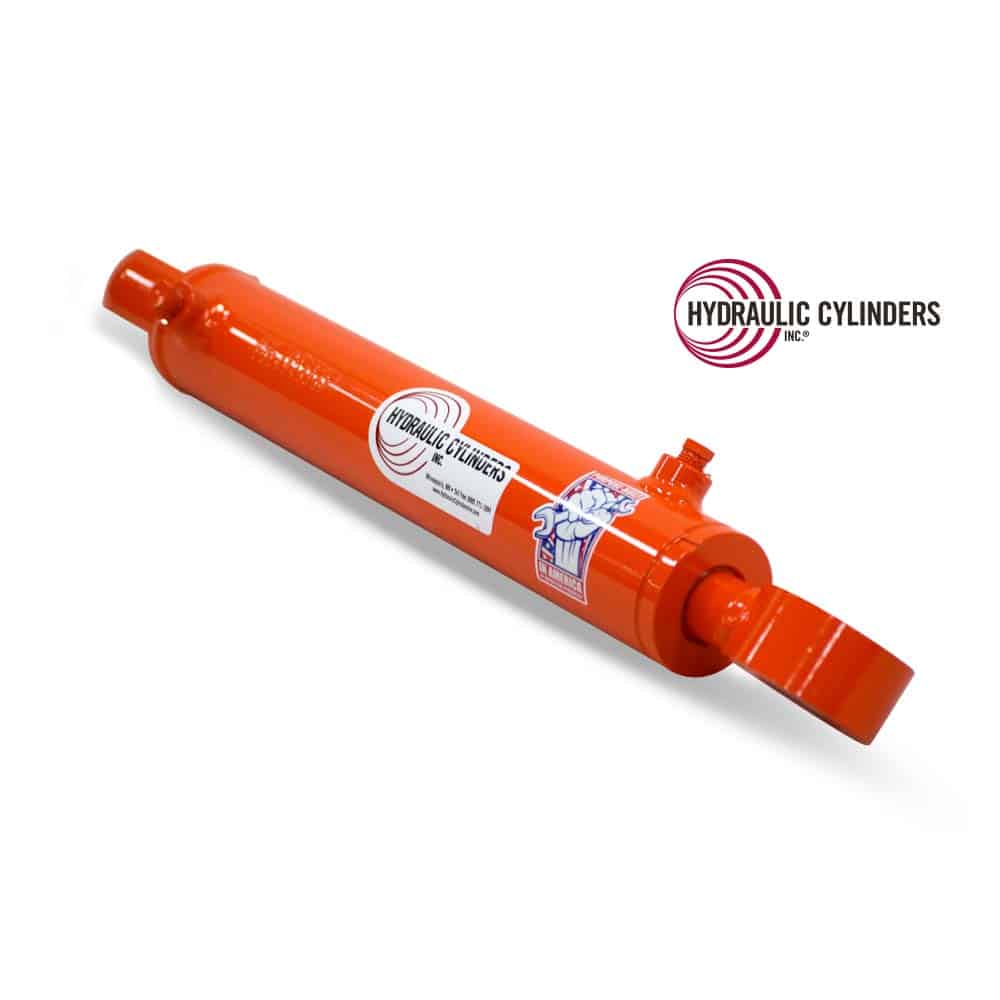

Welded Hydraulic Cylinder (Base Mount: Drilled Thru Lug, Rod Mount: Drilled Thru Lug), 55mm Bore, 30mm Rod, 10.16 Stroke
This 55mm Bore welded hydraulic cylinder is Made in the USA from all-steel components, this replacement hydraulic cylinder is Performance-Built and Warranty-Backed.
With a welded rod, double-acting design, it delivers reliable lift and stable control across demanding cycles. Designed for frequent lifting in rough outdoor conditions.
FASTSHIP eligible — order by 12:00 CST for same-day shipping.
Dimensions in inches, unless otherwise noted
- Bore: 55mm
- Rod: 30mm
- Stroke: 10.16
- Closed: 19.688
- Open Extended Length: 29.848
- Operating Pressure (PSI): 3000
- Base End Mount Type: Drilled Thru Lug
- Base Pin Size: 30mm
- Base Mount Width: 1.375
- Rod End Mount Type: Drilled Thru Lug
- Rod Pin Size: 30mm
- Rod Mount Width: 1.375
- Extend Port/Plunger: 1/4 BSPT
- Retract Port/Plunger: 1/4 BSPT
