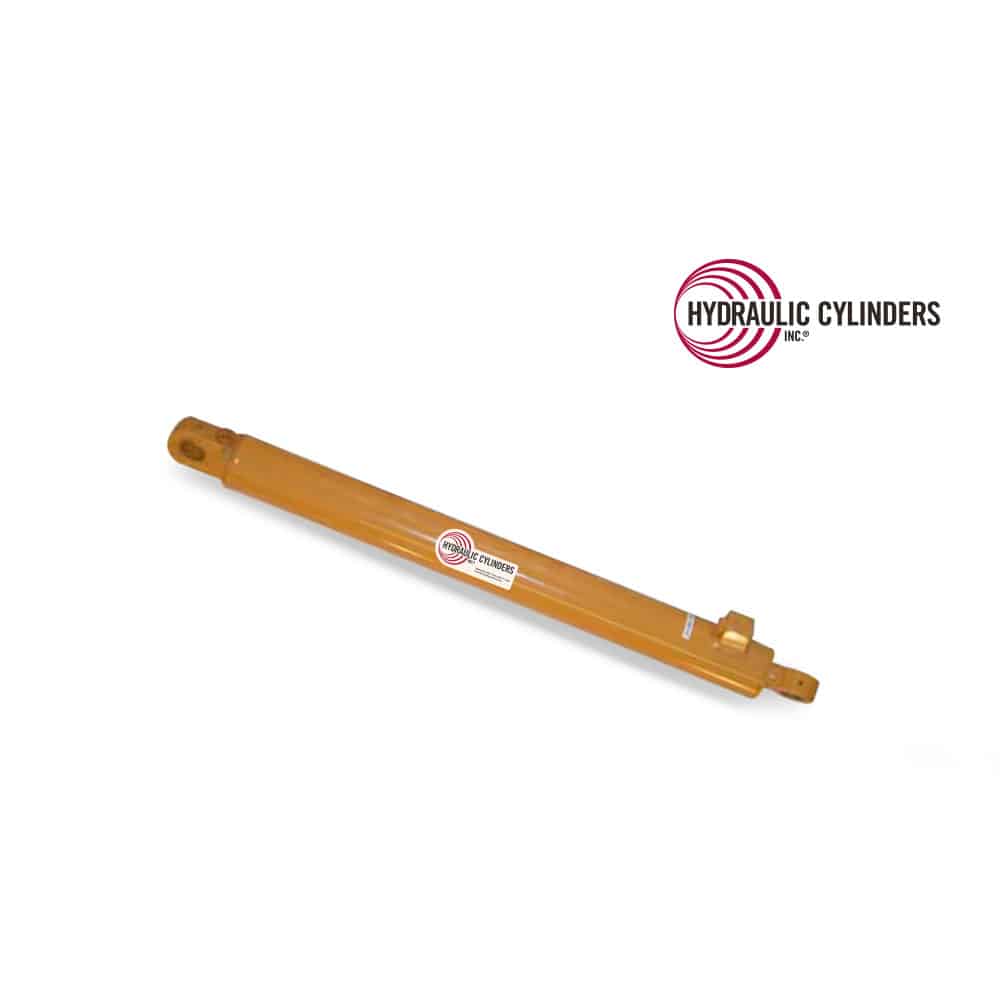

Welded Hydraulic Cylinder (Base Mount: Drilled Thru Lug, Rod Mount: Drilled Thru Lug), 3.00 Bore, 1.75 Rod, 31.625 Stroke
This 3.00 Bore welded hydraulic cylinder is Made in the USA from all-steel components, this replacement hydraulic cylinder is Performance-Built and Warranty-Backed.
With a welded rod, double-acting design, it delivers reliable lift and stable control across demanding cycles. Designed for frequent lifting in rough outdoor conditions.
FASTSHIP eligible — order by 12:00 CST for same-day shipping.
Dimensions in inches, unless otherwise noted
- Bore: 3.00
- Rod: 1.75
- Stroke: 31.625
- Closed: 41.75
- Open Extended Length: 73.375
- Base End Mount Type: Drilled Thru Lug
- Base Pin Size: 1.75
- Base Mount Width: 1.50
- Rod End Mount Type: Drilled Thru Lug
- Rod Pin Size: 1.50
- Rod Mount Width: 1.50
- Extend Port/Plunger: -10 SAE ORB 90D
- Retract Port/Plunger: -10 SAE ORB 90D
