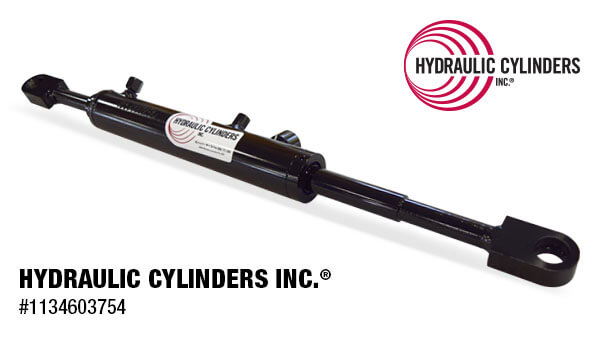

Welded Hydraulic Cylinder (Base Mount: Drilled Thru Lug, Rod Mount: Drilled Thru Lug), 1.50 Bore, 1.00 Rod, 6.25 Stroke
This 1.50 Bore welded hydraulic cylinder is Made in the USA from all-steel components, this replacement hydraulic cylinder is Performance-Built and Warranty-Backed.
With a welded rod, double-acting design, it delivers reliable lift and stable control across demanding cycles. Designed for frequent lifting in rough outdoor conditions.
FASTSHIP eligible — order by 12:00 CST for same-day shipping.
Dimensions in inches, unless otherwise noted
- Bore: 1.50
- Rod: 1.00
- Stroke: 6.25
- Closed: 27.00
- Open Extended Length: 33.25
- Operating Pressure (PSI): 3000
- Base End Mount Type: Drilled Thru Lug
- Base Pin Size: 1.00
- Base Mount Width: 0.83
- Rod End Mount Type: Drilled Thru Lug
- Rod Pin Size: 1.00
- Rod Mount Width: 0.83
- Extend Port/Plunger: -6 JIC
- Retract Port/Plunger: -6 SAE ORB 90D
