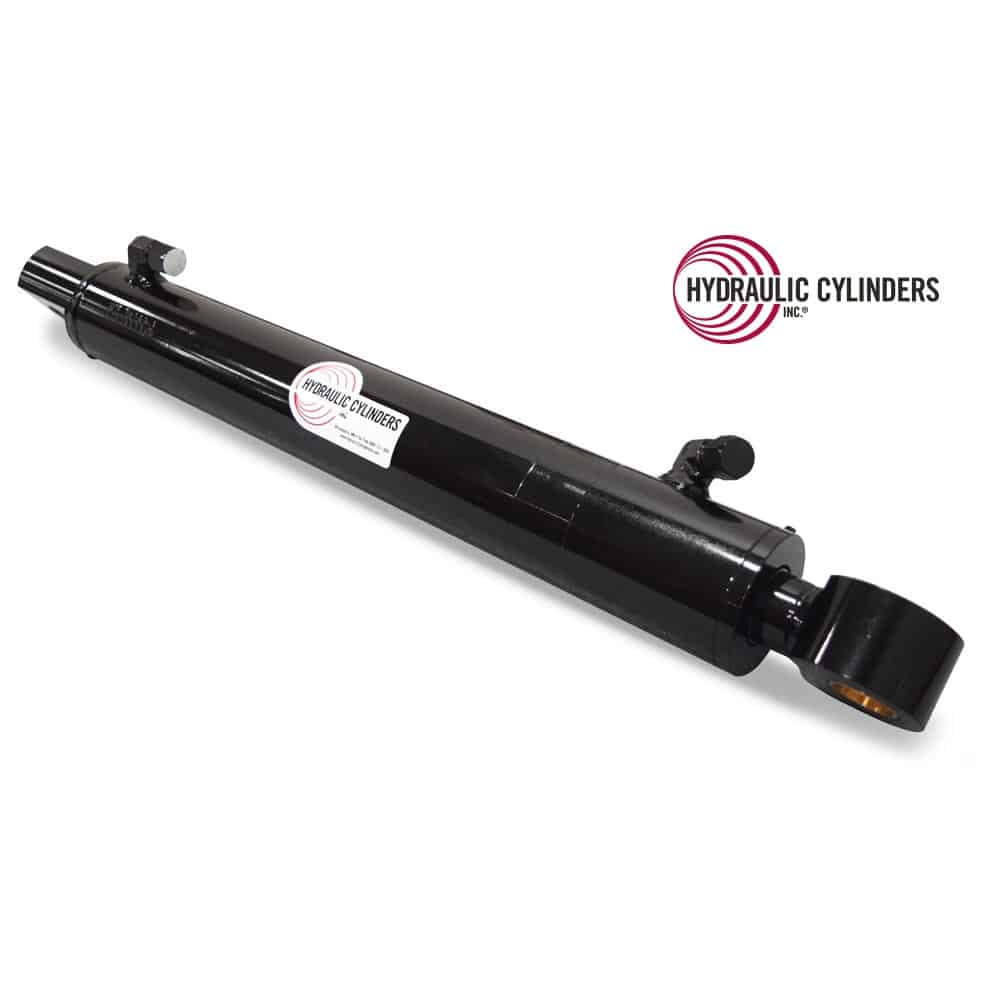

Welded Hydraulic Cylinder (Base Mount: Drilled Thru Lug, Rod Mount: Cross-Tube), 2.75 Bore, 1.625 Rod, 17.75 Stroke
This 2.75 Bore welded hydraulic cylinder is Made in the USA from all-steel components, this replacement hydraulic cylinder is Performance-Built and Warranty-Backed.
With a welded rod, double-acting design, it delivers reliable lift and stable control across demanding cycles. Designed for frequent lifting in rough outdoor conditions.
FASTSHIP eligible — order by 12:00 CST for same-day shipping.
Dimensions in inches, unless otherwise noted
- Bore: 2.75
- Rod: 1.625
- Stroke: 17.75
- Closed: 28.125
- Open Extended Length: 45.875
- Operating Pressure (PSI): 3000
- Base End Mount Type: Drilled Thru Lug
- Base Pin Size: 1.25
- Base Mount Width: 1.70
- Rod End Mount Type: Cross-Tube
- Rod Pin Size: 1.25
- Rod Mount Width: 1.875
- Extend Port/Plunger: -8 JIC 90D
- Retract Port/Plunger: -8 JIC 90D
