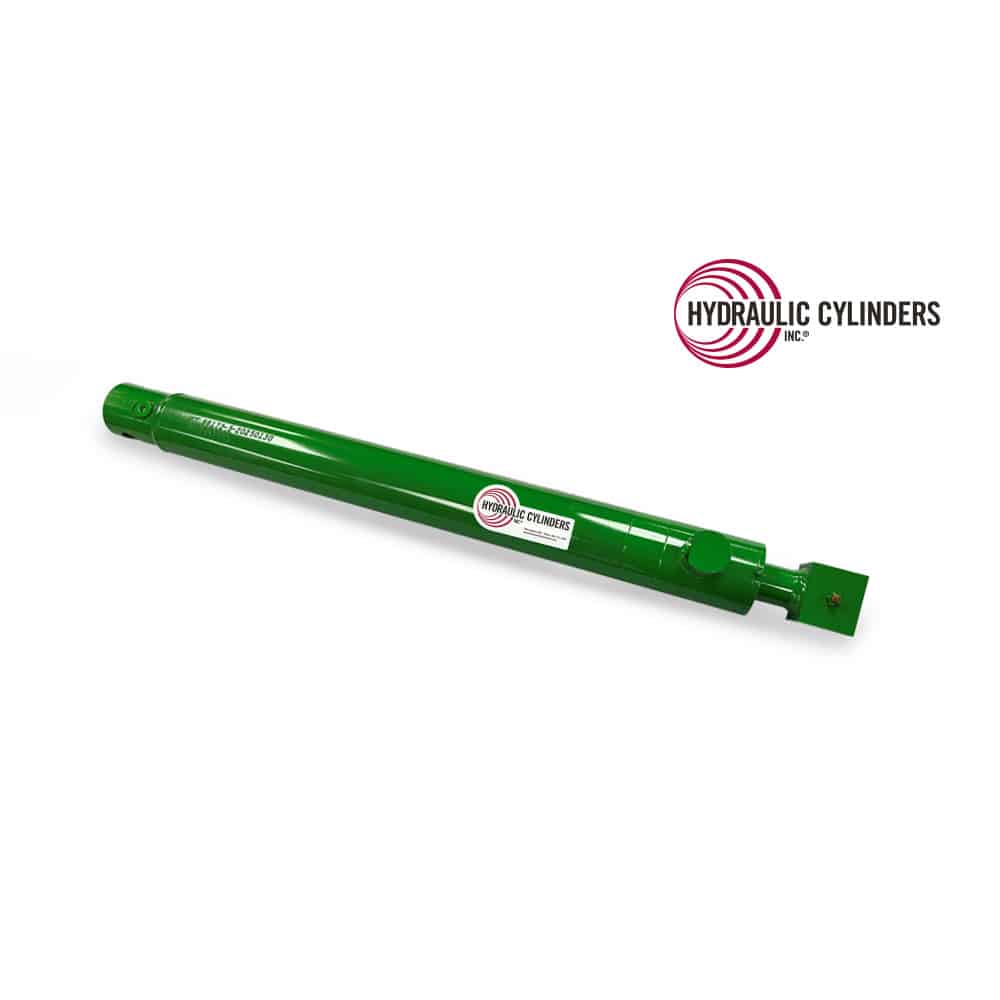

Welded Hydraulic Cylinder (Base Mount: Drilled Thru Base, Rod Mount: Cross-Tube), 63mm Bore, 40mm Rod, 24.49 Stroke
This 63mm Bore welded hydraulic cylinder is Made in the USA from all-steel components, this replacement hydraulic cylinder is Performance-Built and Warranty-Backed.
With a welded rod, double-acting design, it delivers reliable lift and stable control across demanding cycles. Designed for frequent lifting in rough outdoor conditions.
FASTSHIP eligible — order by 12:00 CST for same-day shipping.
Dimensions in inches, unless otherwise noted
- Bore: 63mm
- Rod: 40mm
- Stroke: 24.49
- Closed: 32.80
- Open Extended Length: 57.29
- Operating Pressure (PSI): 3000
- Base End Mount Type: Drilled Thru Base
- Base Pin Size: 2.75
- Base Mount Width: 2.75
- Rod End Mount Type: Cross-Tube
- Rod Pin Size: 1.125
- Rod Mount Width: 2.39
- Extend Port/Plunger: -8 SAE ORB 90D
- Retract Port/Plunger: -8 SAE ORB
