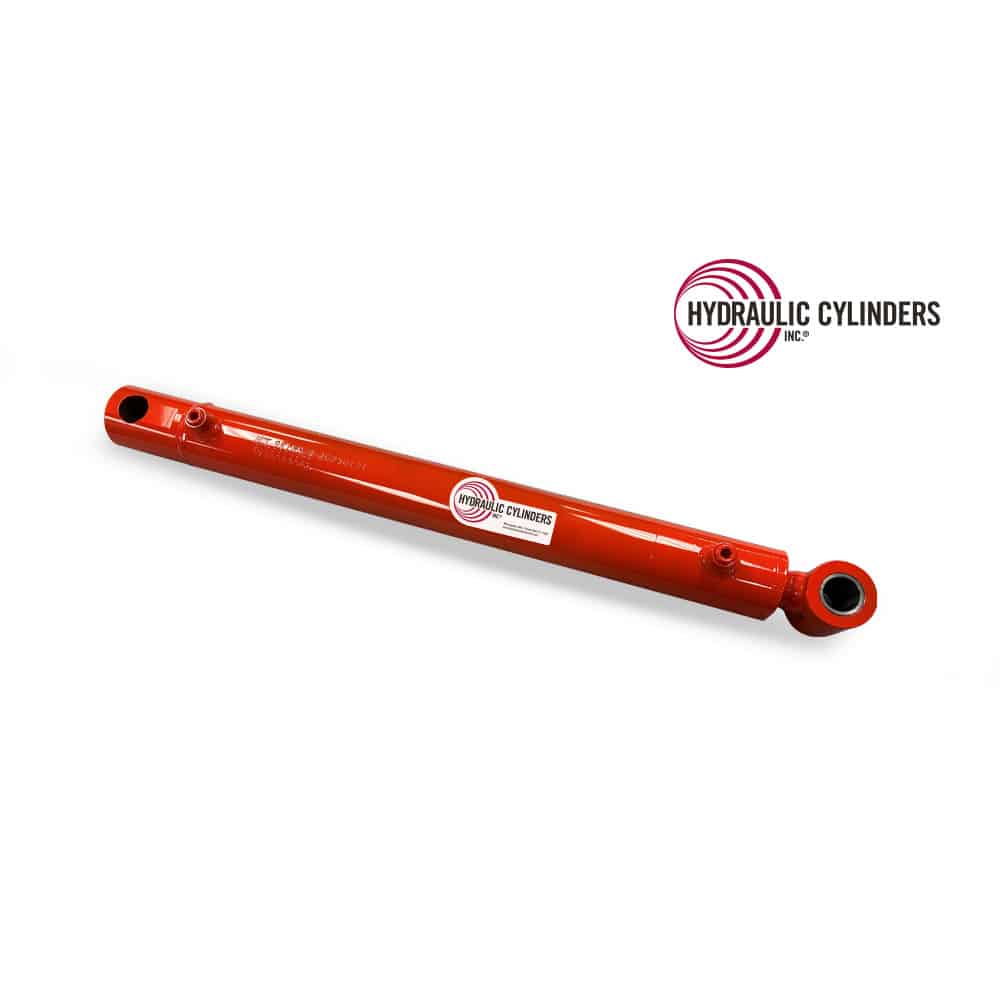

Welded Hydraulic Cylinder (Base Mount: Drilled Thru Base, Rod Mount: Cross-Tube), 55mm Bore, 35mm Rod, 18.39 Stroke
This 55mm Bore welded hydraulic cylinder is Made in the USA from all-steel components, this replacement hydraulic cylinder is Performance-Built and Warranty-Backed.
With a welded rod, double-acting design, it delivers reliable lift and stable control across demanding cycles. Designed for frequent lifting in rough outdoor conditions.
FASTSHIP eligible — order by 12:00 CST for same-day shipping.
Dimensions in inches, unless otherwise noted
- Bore: 55mm
- Rod: 35mm
- Stroke: 18.39
- Closed: 27.29
- Open Extended Length: 45.68
- Operating Pressure (PSI): 3000
- Base End Mount Type: Drilled Thru Base
- Base Pin Size: 1.125
- Base Mount Width: 2.405
- Rod End Mount Type: Cross-Tube
- Rod Pin Size: 1.125
- Rod Mount Width: 2.25
- Extend Port/Plunger: .375 NPT
- Retract Port/Plunger: .375 NPT
