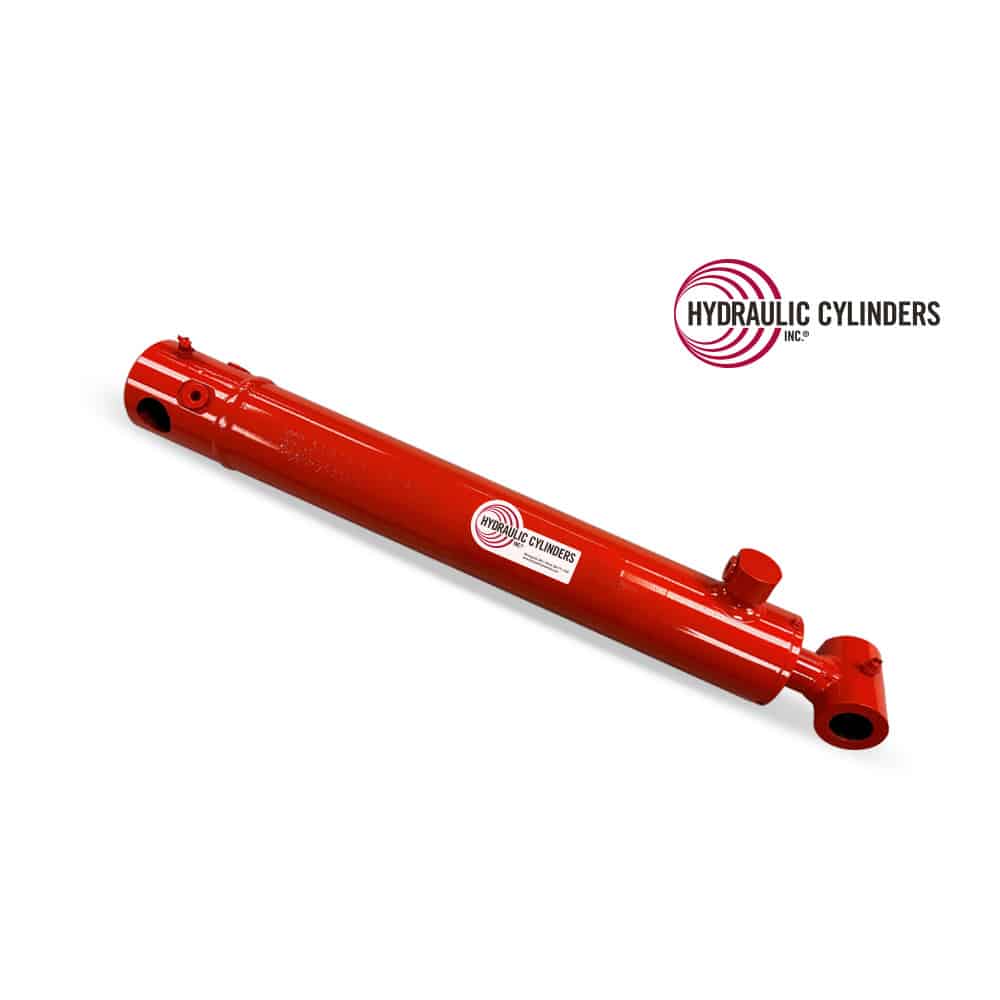

Welded Hydraulic Cylinder (Base Mount: Drilled Thru Base, Rod Mount: Cross-Tube), 2.25 Bore, 1.12 Rod, 12.00 Stroke
This 2.25 Bore welded hydraulic cylinder is Made in the USA from all-steel components, this replacement hydraulic cylinder is Performance-Built and Warranty-Backed.
With a welded rod, double-acting design, it delivers reliable lift and stable control across demanding cycles. Designed for frequent lifting in rough outdoor conditions.
FASTSHIP eligible — order by 12:00 CST for same-day shipping.
Dimensions in inches, unless otherwise noted
- Bore: 2.25
- Rod: 1.12
- Stroke: 12.00
- Closed: 19.81
- Open Extended Length: 31.81
- Operating Pressure (PSI): 3000
- Base End Mount Type: Drilled Thru Base
- Base Pin Size: 1.00
- Base Mount Width: 2.625
- Rod End Mount Type: Cross-Tube
- Rod Pin Size: 1.00
- Rod Mount Width: 2.50
- Extend Port/Plunger: -6 SAE ORB x 2
- Retract Port/Plunger: -6 SAE ORB
