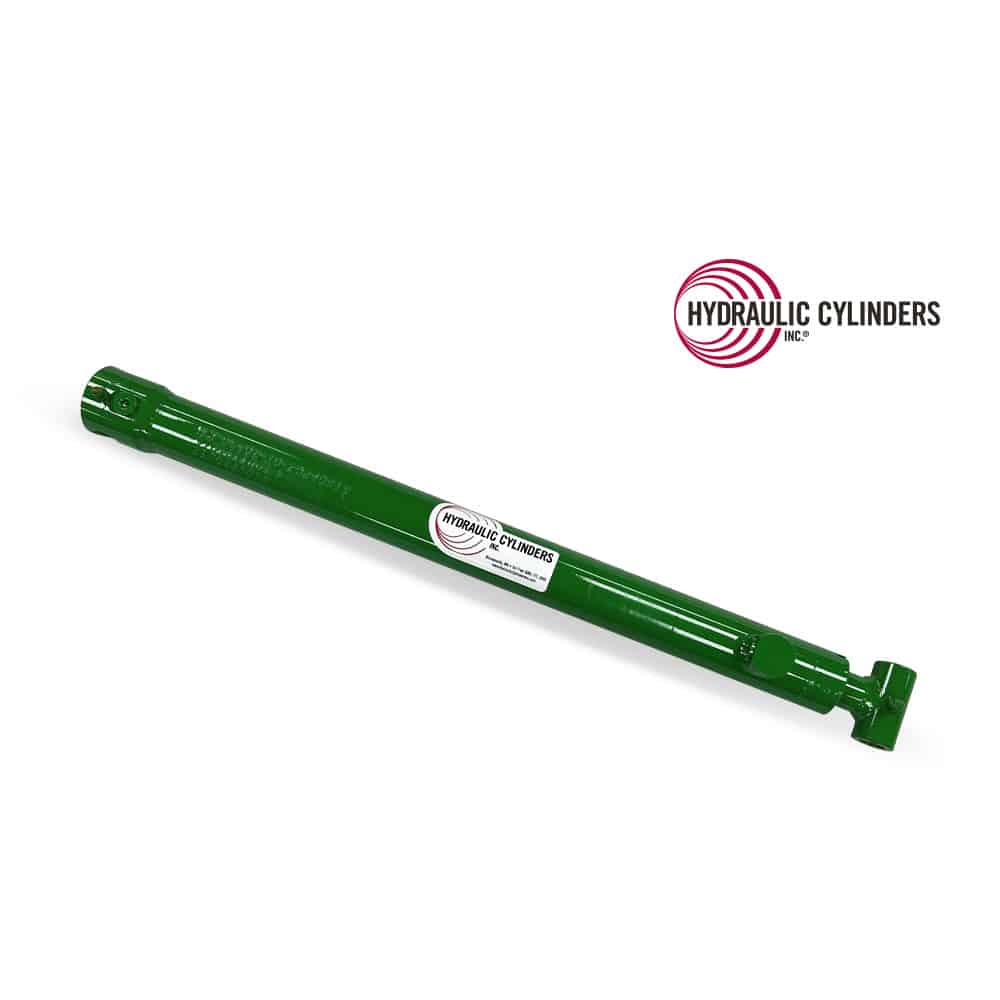

Welded Hydraulic Cylinder (Base Mount: Drilled Thru Base, Rod Mount: Cross-Tube), 1.50 Bore, 1.125 Rod, 17.25 Stroke
This 1.50 Bore welded hydraulic cylinder is Made in the USA from all-steel components, this replacement hydraulic cylinder is Performance-Built and Warranty-Backed.
With a welded rod, double-acting design, it delivers reliable lift and stable control across demanding cycles. Designed for frequent lifting in rough outdoor conditions.
FASTSHIP eligible — order by 12:00 CST for same-day shipping.
Dimensions in inches, unless otherwise noted
- Bore: 1.50
- Rod: 1.125
- Stroke: 17.25
- Closed: 24.813
- Open Extended Length: 42.063
- Operating Pressure (PSI): 3000
- Base End Mount Type: Drilled Thru Base
- Base Pin Size: .75
- Base Mount Width: 2.125
- Rod End Mount Type: Cross-Tube
- Rod Pin Size: .75
- Rod Mount Width: 2.438
- Extend Port/Plunger: -6 SAE ORB
- Retract Port/Plunger: -6 SAE ORB 90D
