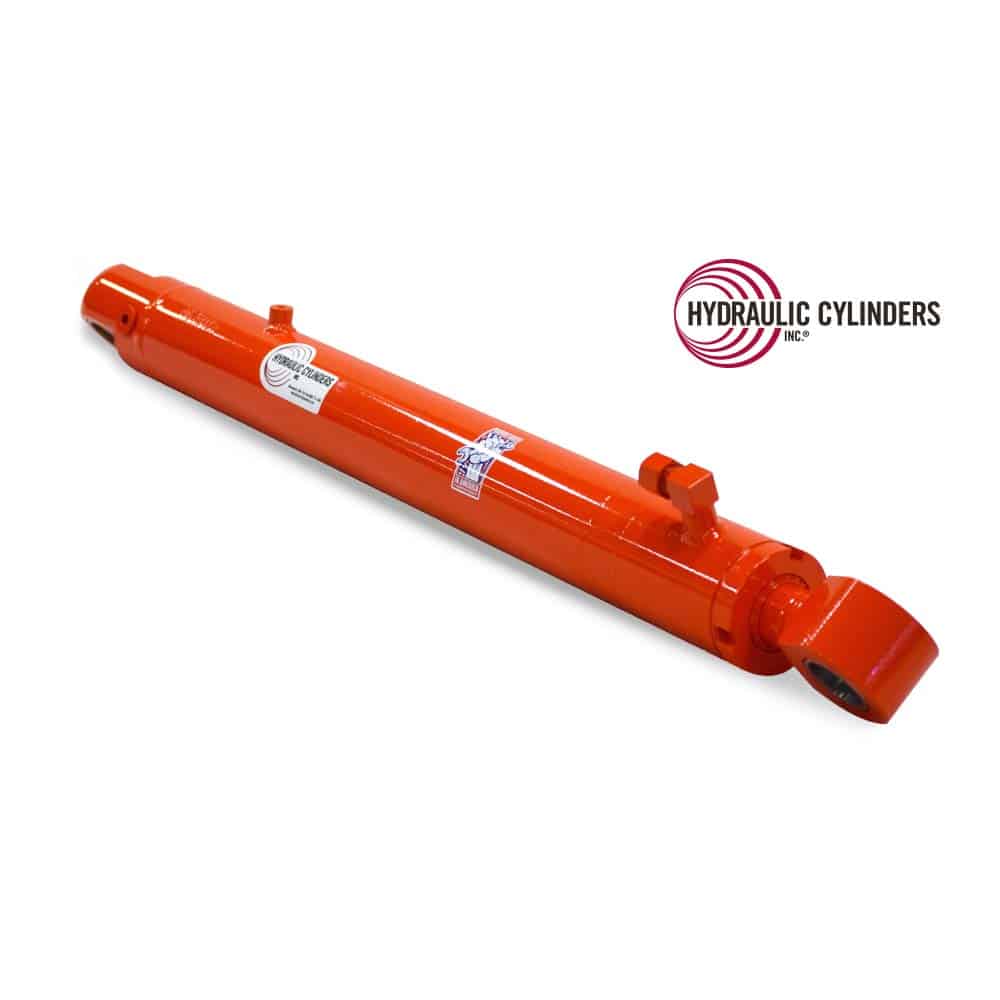

Welded Hydraulic Cylinder (Base: Drilled Thru Lug, Rod: Drilled Thru Lug): 75mm Bore, 45mm Rod, 25.30 Stroke, 1.79 Pin
This 75mm Bore x 25.30 Stroke welded hydraulic cylinder is Made in the USA from all-steel components, this replacement hydraulic cylinder is Performance-Built and Warranty-Backed.
With a welded rod, double-acting design, it delivers reliable lift and stable control across demanding cycles. Designed for frequent lifting in rough outdoor conditions.
FASTSHIP eligible — order by 12:00 CST for same-day shipping.
Dimensions in inches, unless otherwise noted
- Bore: 75mm
- Rod: 45mm
- Stroke: 25.30
- Closed: 38.67
- Open Extended Length: 63.97
- Operating Pressure (PSI): 3000
- Base End Mount Type: Drilled Thru Lug
- Base Pin Size: 1.79
- Base Mount Width: 2.35
- Rod End Mount Type: Drilled Thru Lug
- Rod Pin Size: 1.79
- Rod Mount Width: 2.35
- Extend Port/Plunger: 1/2 BSPP
- Retract Port/Plunger: 1/2 BSPP
