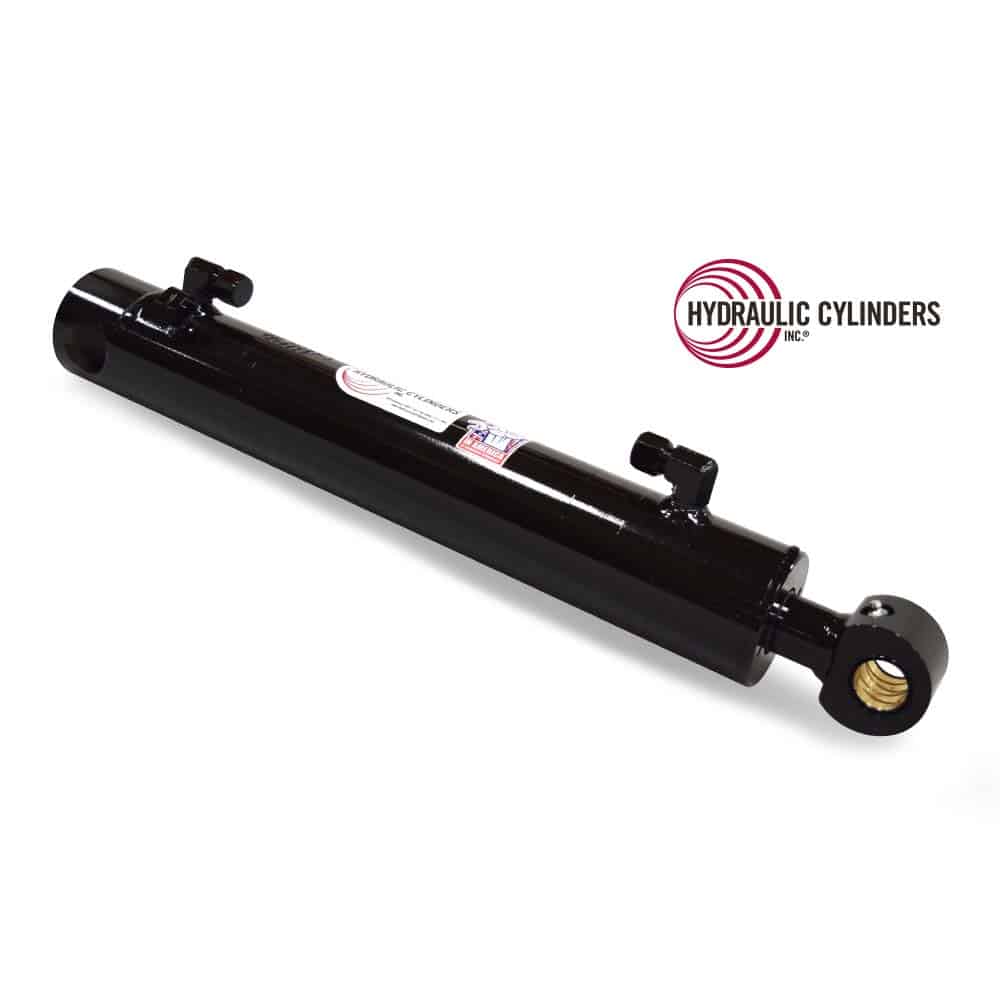

Welded Hydraulic Cylinder (Base: Drilled Thru Lug, Rod: Cross-Tube): 3.00 Bore, 1.50 Rod, 15.00 Stroke, 1.25 Pin
This 3.00 Bore x 15.00 Stroke welded hydraulic cylinder is Made in the USA from all-steel components, this replacement hydraulic cylinder is Performance-Built and Warranty-Backed.
With a welded rod, double-acting design, it delivers reliable lift and stable control across demanding cycles. Designed for frequent lifting in rough outdoor conditions.
FASTSHIP eligible — order by 12:00 CST for same-day shipping.
Dimensions in inches, unless otherwise noted
- Bore: 3.00
- Rod: 1.50
- Stroke: 15.00
- Closed: 24.00
- Open Extended Length: 39.00
- Operating Pressure (PSI): 3000
- Base End Mount Type: Drilled Thru Lug
- Base Pin Size: 1.75
- Base Mount Width: 3.50
- Rod End Mount Type: Cross-Tube
- Rod Pin Size: 1.25
- Rod Mount Width: 1.875
- Extend Port/Plunger: -8 JIC
- Retract Port/Plunger: -8 JIC
