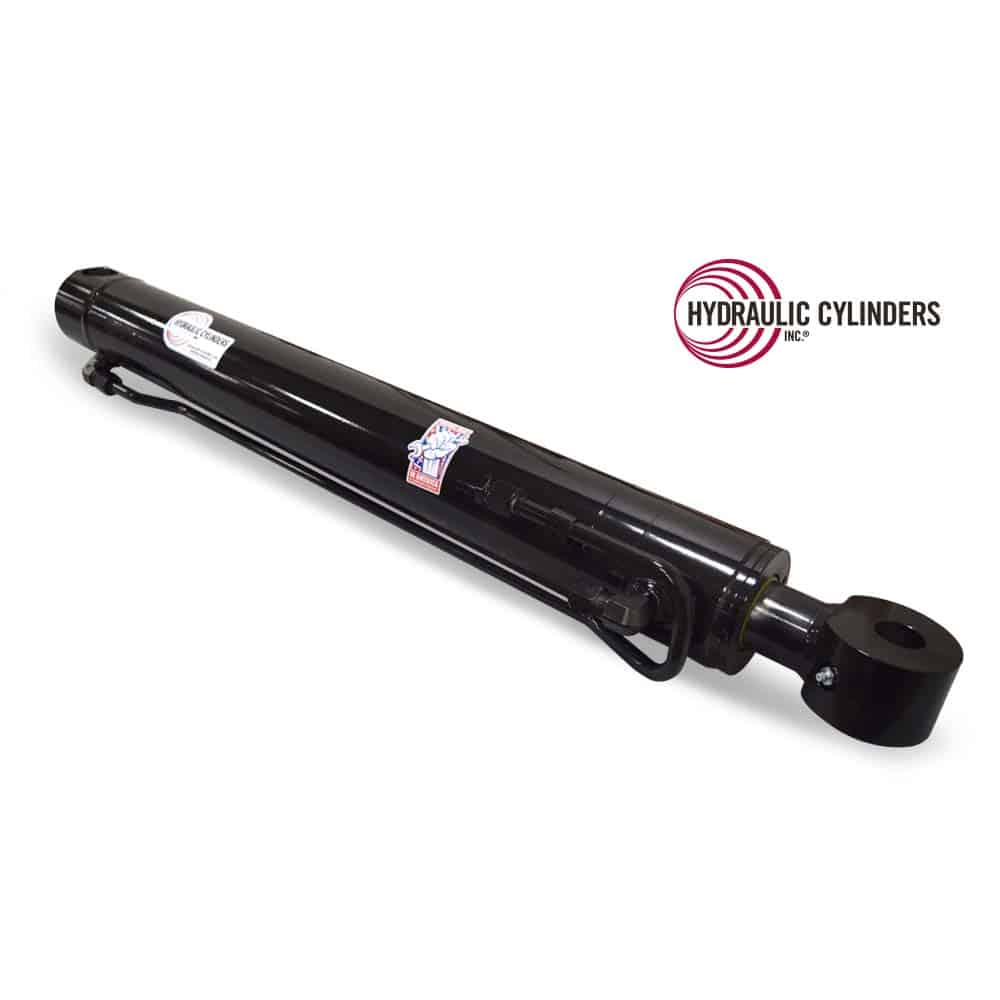

Welded Hydraulic Cylinder (Base: Drilled Thru Base, Rod: Cross-Tube): 3.25 Bore, 2.00 Rod, 26.00 Stroke, 1.25 Pin
This 3.25 Bore x 26.00 Stroke welded hydraulic cylinder is Made in the USA from all-steel components, this replacement hydraulic cylinder is Performance-Built and Warranty-Backed.
With a welded rod, double-acting design, it delivers reliable lift and stable control across demanding cycles. Designed for frequent lifting in rough outdoor conditions.
FASTSHIP eligible — order by 12:00 CST for same-day shipping.
Dimensions in inches, unless otherwise noted
- Bore: 3.25
- Rod: 2.00
- Stroke: 26.00
- Closed: 36.50
- Open Extended Length: 62.50
- Operating Pressure (PSI): 3000
- Base End Mount Type: Drilled Thru Base
- Base Pin Size: 1.50
- Base Mount Width: 3.625
- Rod End Mount Type: Cross-Tube
- Rod Pin Size: 1.25
- Rod Mount Width: 2.25
- Extend Port/Plunger: -8 JIC 90D
- Retract Port/Plunger: -8 JIC 90D
