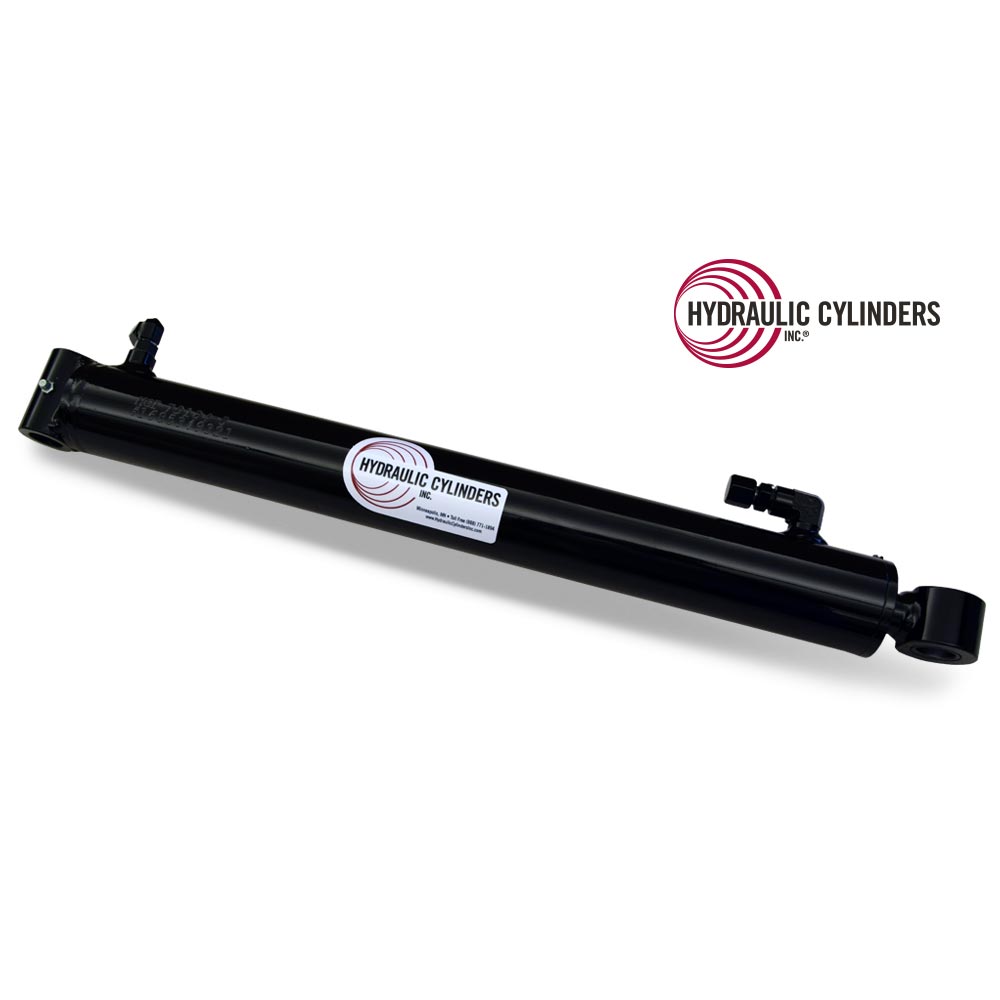

Welded Hydraulic Cylinder (Base: Cross-Tube, Rod: Cross-Tube): 2.00 Bore, 1.00 Rod, 16.563 Stroke, .89 Pin
This 2.00 Bore x 16.563 Stroke welded hydraulic cylinder is Made in the USA from all-steel components, this replacement hydraulic cylinder is Performance-Built and Warranty-Backed.
With a welded rod, double-acting design, it delivers reliable lift and stable control across demanding cycles. Designed for frequent lifting in rough outdoor conditions.
FASTSHIP eligible — order by 12:00 CST for same-day shipping.
Dimensions in inches, unless otherwise noted
- Bore: 2.00
- Rod: 1.00
- Stroke: 16.563
- Closed: 23.00
- Open Extended Length: 39.563
- Operating Pressure (PSI): 2500
- Base End Mount Type: Cross-Tube
- Base Pin Size: .89
- Base Mount Width: 2.375
- Rod End Mount Type: Cross-Tube
- Rod Pin Size: .89
- Rod Mount Width: 1.375
- Extend Port/Plunger: -6 JIC 90D
- Retract Port/Plunger: -6 JIC 90D
