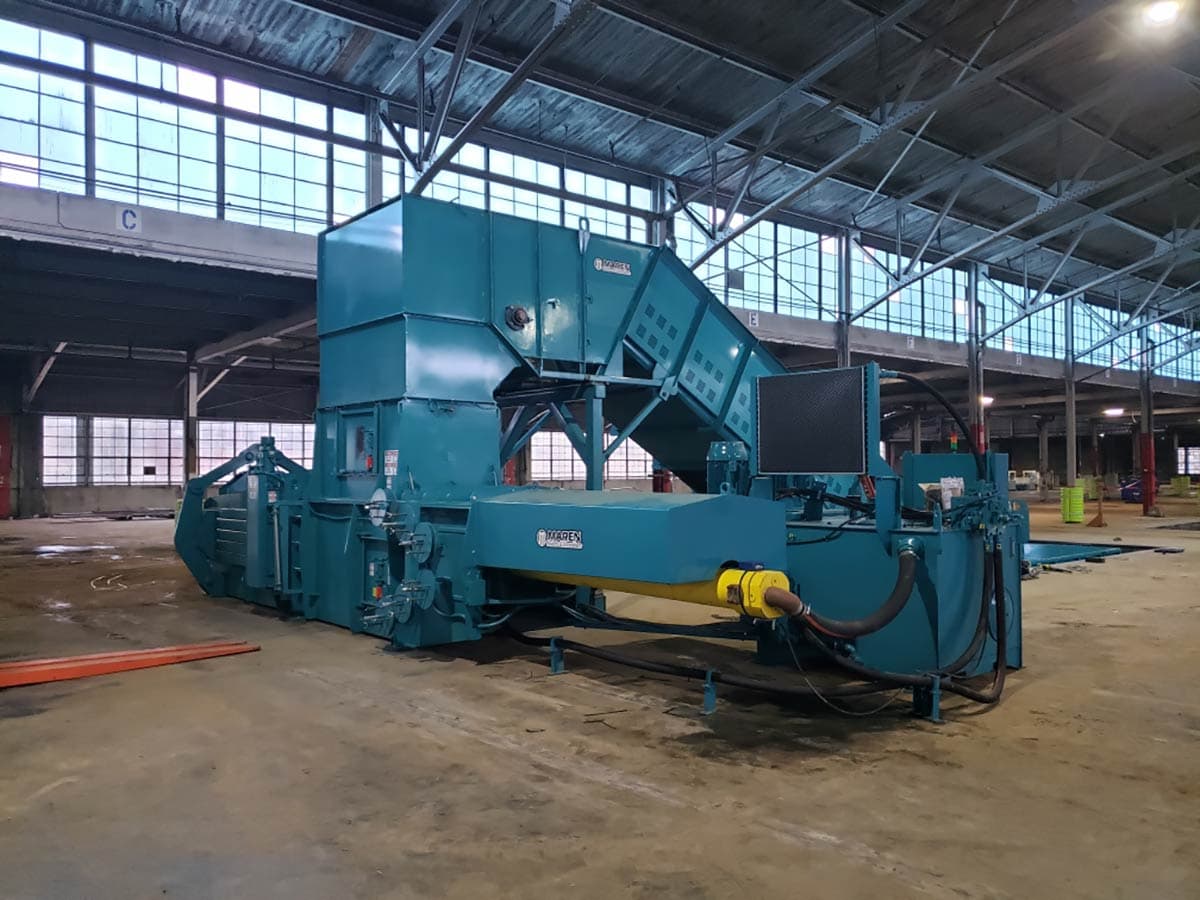

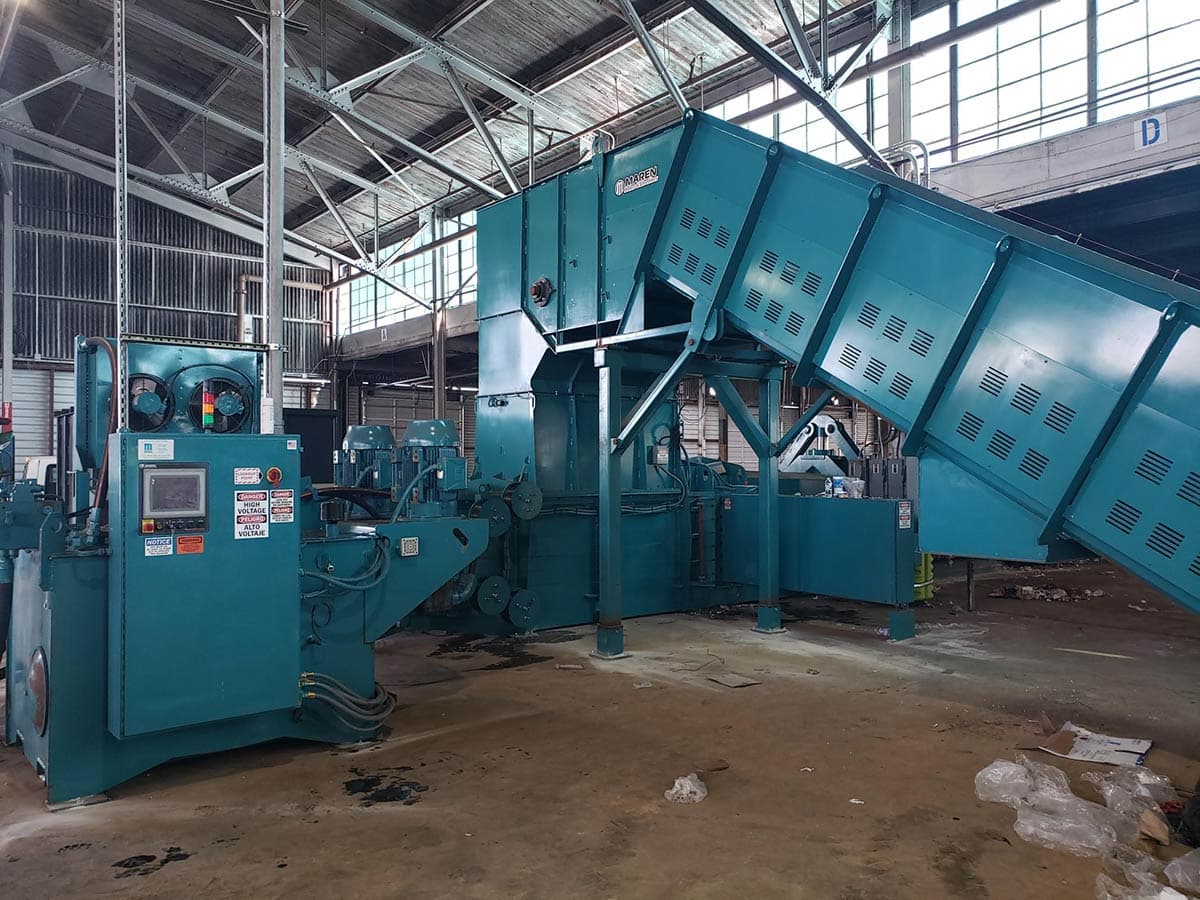

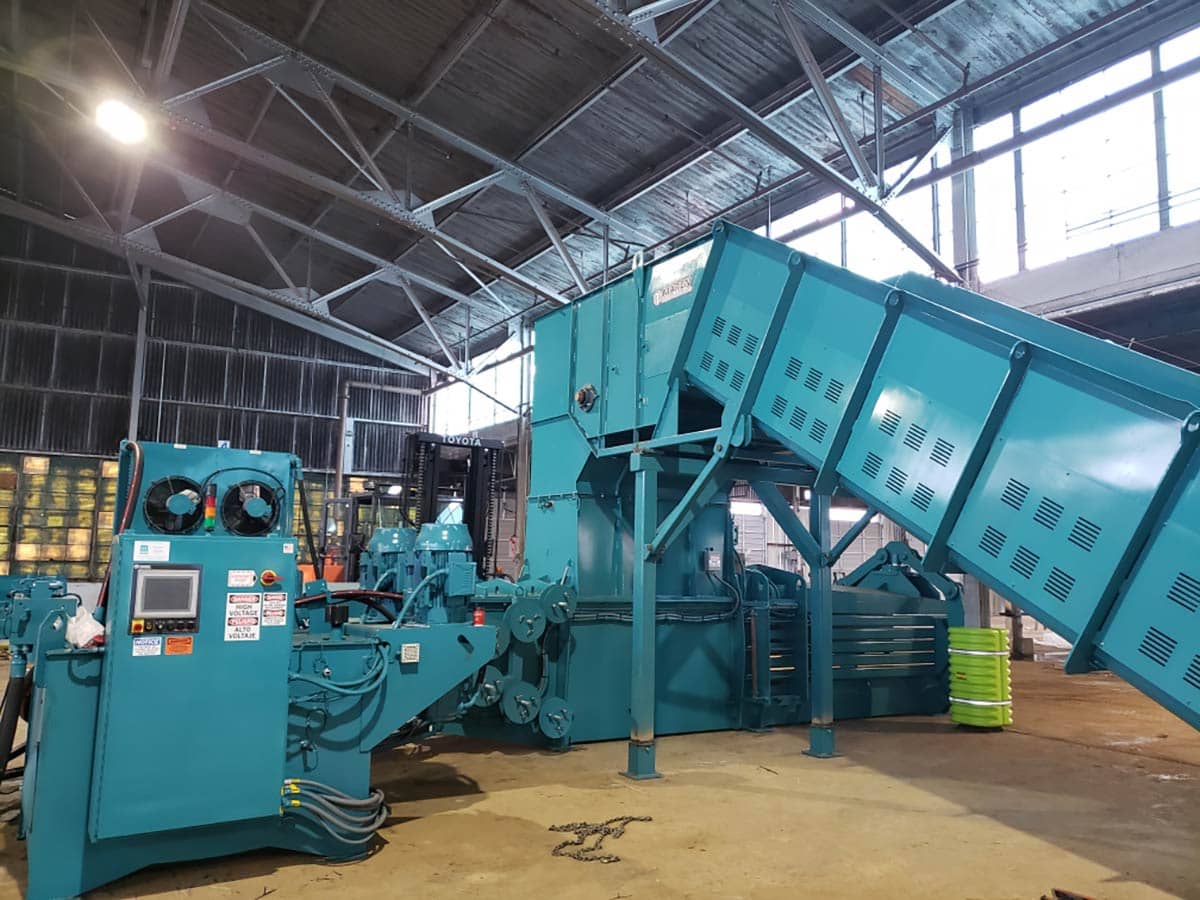

Maren ProPak A265 Auto Tie Baler
Literature:
A265-A285-10-30-19lo.pdf
Maren balers have long been regarded as the standard of the box, printing, and process industries. The Maren ProPAK-A Series takes that standard even higher — built for the difficult duty cycle of corrugated box, folding carton, printing, converting, envelope, and tissue industries, with multiple horsepower options and several hopper sizes.
- Interlocking chassis and ram of high-strength plate steel.
- Advanced progressive shear-blade design with 30″ penetration; replaceable double-edge hardened tool-steel blades.
- AR400 abrasion-resistant replaceable floor liner; NylOil ram wear plates with spring-loaded AR400 scraper.
- Electronically interlocked, padlockable service door; key-lock main-cylinder mount.
- Automatic electrically driven wire tier; optional bulk wire feed and hoist wire-loading boom.
| Spec | Value |
|---|---|
| Feed Opening – Width | 39.5″ or 42.5″ |
| Feed Opening – Length | 48″, 64″, 80″ |
| Feed Opening – Depth | 42″ |
| Main Cylinder | 9″ |
| Operating Pressure | 4200 PSI |
| Ram Force | 267,192 lbs |
| Baling Force | 141 PSI (45 wide) / 151 PSI (42 wide) |
| Horsepower Options | Twin 30s |
| No Load Cycle Time | 15–20.4 secs |
| No Load Displacement | up to 14,400 cf/hr |

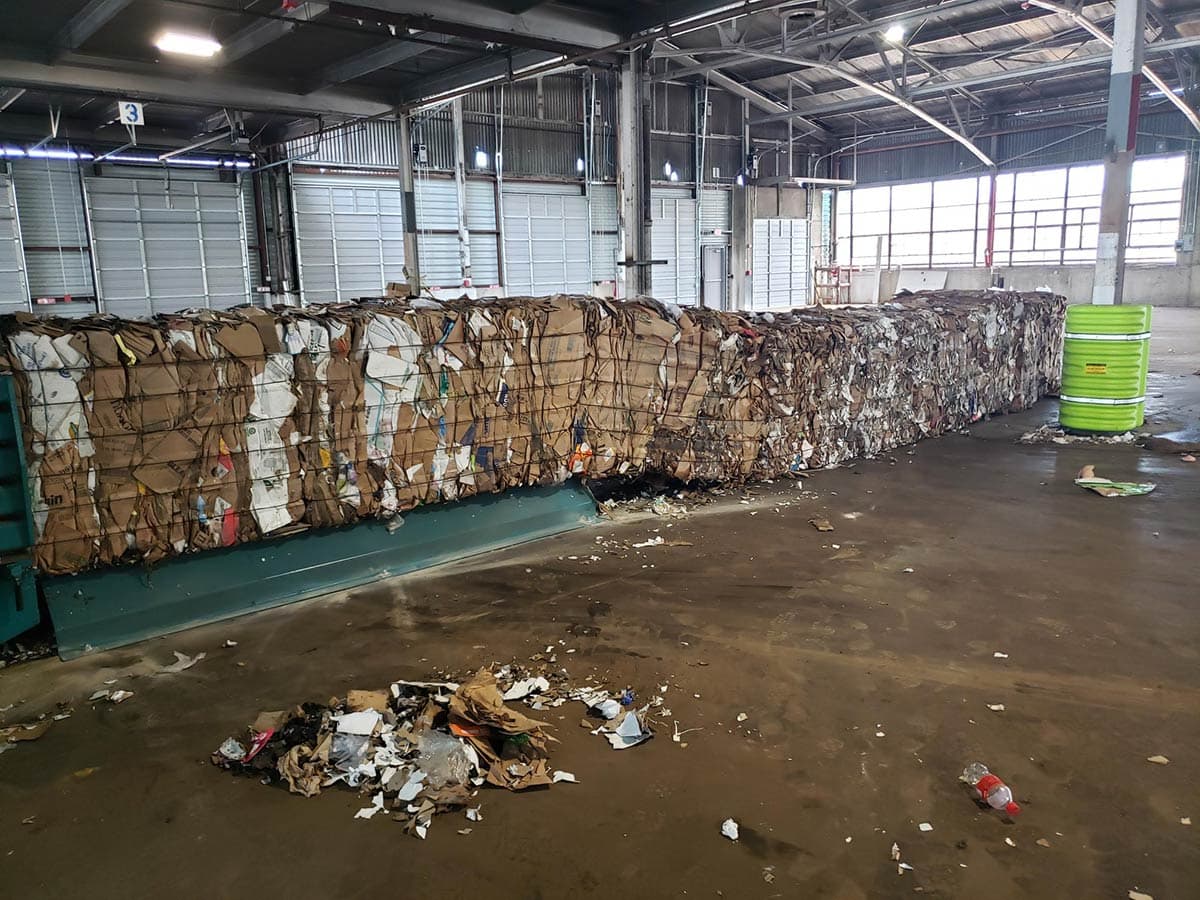

| Bale Size | 42×42 or 45×42 × variable |
| Typical Bale Density | OCC 33 #/cf |
- 10.4″ Allen-Bradley PanelView touchscreen with graphic bale-percentage progress bar.
- Saved per-material settings; dual-motor selection or automatic on-demand second motor.
- Fault/E-stop history log; optional conveyor controls; password protection separating run-time from service adjustments.
