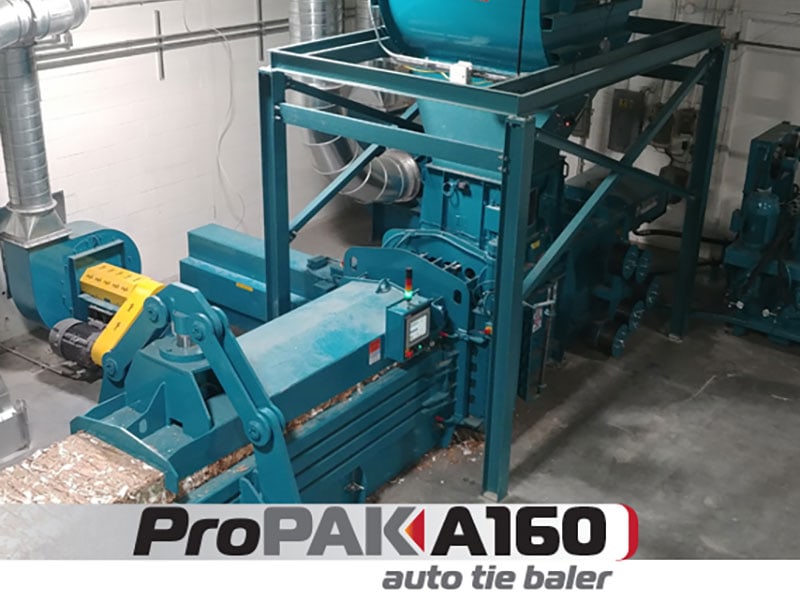

Maren ProPak A160 Auto Tie Shear Baler
Literature:
A160-lo-res.pdf
Maren balers have long been regarded as the standard of the box, printing, and process industries. The Maren ProPAK-A Series takes that standard to an even higher level — built specifically for the difficult duty cycle required in corrugated box, folding carton, printing, converting, envelope, and tissue industries. For high-volume operations where bale weight, uptime, durability, safety, serviceability, and cleanliness matter, the ProPAK-A Series delivers. Multiple horsepower options and several hopper sizes fulfill virtually any production requirement.
- “A”-frame single-cylinder tension chamber takes advantage of maximum ram force during full-pressure baling.
- Bale sizes 30″ × 40″ × variable length, with weights up to 1,750 lbs.
- Hopper sizes to adapt to any air-conveying system.
- Advanced automatic 5-wire bale tier with electrically driven inserter and twister.
- Optional 1,000# bulk wire feed system.
- Optional easy-lifting electric hoist wire-loading boom.
- Advanced progressive shear-blade design with 30″ penetration reduces shear jams and uses maximum ram pressure
- Interlocking baler chassis and ram of high-strength plate steel, significantly increasing weld-joint strength.
- High-strength steel-plate floor reinforced with a replaceable AR400 abrasion-resistant wear plate.
- Main ram guided and sealed on bottom and sides by long-wearing NylOil wear plates; top sealed with a
- Chassis service door (electronically interlocked, padlockable) for access ahead of and behind the main ram.
- Maren’s exclusive key-lock main-cylinder mount removes cylinder tension from bolts for easy service and durability.
| Spec | Value |
|---|---|
| Feed opening — width | 27.5" |
| Feed opening — length | 30" or 40" |
| Feed opening — depth | 40" |
| Main cylinder | 7" |
| Operating pressure | 4,200 PSI |
| Ram force | 161,635 lbs |
| Baling force | 134.7 PSI |
| Horsepower options | Single 20/30, Twin 20/30 |
| No-load cycle time | 7.7–16 secs |
| No-load displacement | up to 18,700 cf/hr |
| Bale size | 30" × 40" × variable length |
| Typical bale density | OCC up to 30 #/cf |
- 10.4″ Allen-Bradley PanelView.
- Displays current status with a graphic bale-percentage progress bar.
- Selects saved material settings (bale length, photo-eye options, etc.).
- On dual-motor models, operator selects motor/pump A or B, or automatic on-demand activation of the second motor.
- Displays/stores machine faults and E-stop status; fault-message history log for service.
- Optional conveyor controls (upper/lower photo-eye, run, jog, stop, auto-stop delay).
- Password protection separates run-time features from service-only adjustments.
