Dual Valve Block
Condition:
OEM New
Make:
Aggressive Hydraulics
Partners:
Aggressive Hydraulics, Hydraulic Cylinders, Inc.
- Material: CD 1018
- Dual valve cavity
- Prepared for welded fluid lines

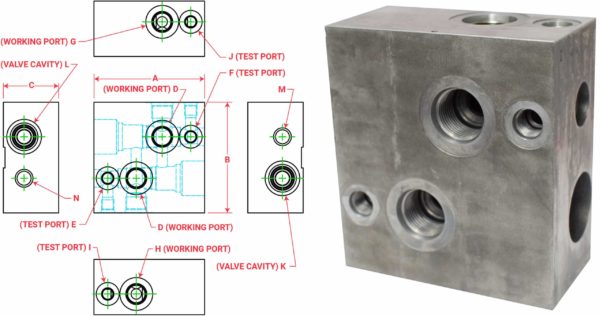

| Part Number | A | B | C | D | E | F | G | H | I | J | K | L | M | N |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1390000230 | 4.00″ | 4.00″ | 2.00″ | #8 ORB | #4 ORB | #4 ORB | #8 ORB | #8 ORB | #4 ORB | #4 ORB | T-11A Cavity | T-11A Cavity | 0.62ø Fluid Line | 0.62ø Fluid Line |
| 1390000231 | 5.00″ | 5.50″ | 2.50″ | #12 ORB | #6 ORB | #6 ORB | #12 ORB | #12 ORB | #6 ORB | #6 ORB | T-2A Cavity | T-2A Cavity | 0.88ø Fluid Line | 0.88ø Fluid Line |
